ModuleSci is proud to announce the launch of their new compact SEM, the PE-100.
The PE-100 is a compact SEM with full-size performance. Supplied with a robust tungsten filament source, the PE-100 has an effective magnification of over 100,000× with a resolution of 3.0 nm. With its generously sized sample chamber, the PE-100 is purpose-built for imaging larger samples, while the 5-axis motorized stage ensures swift and precise sample positioning.
The PE-100 comes with an impressive set of features typically reserved for more expensive microscopes, including both a Navigation Camera and a Chamber Camera for increased versatility. Available with SE, BSE, and EDS, the PE-100 is the latest in a line of imaging tools from a company committed to innovation and excellence.
Specifications
| Dimension (mm) | 680 x 780 x 1460 (W x L x H) |
| Electron source | Tungsten filament |
| Resolution | 3.0 nm |
| Magnification | 20 x ~ 300,000 x |
| Effective magnification | ~ 100,000 x |
| Electron gun vacuum | 10⁻⁶ torr |
| Accelerating voltage | 1 ~ 30 kV |
| Motorized Stage | Chamber type (X, Y, Z, R, T) 50, 50, 45 mm, 360°, -20°~45° |
| Vacuum system | Rotary pump, TMP |

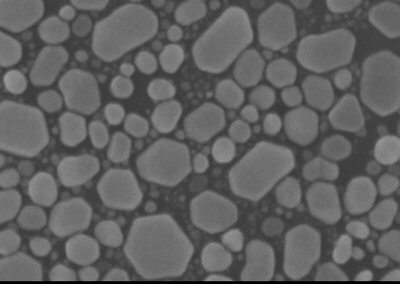

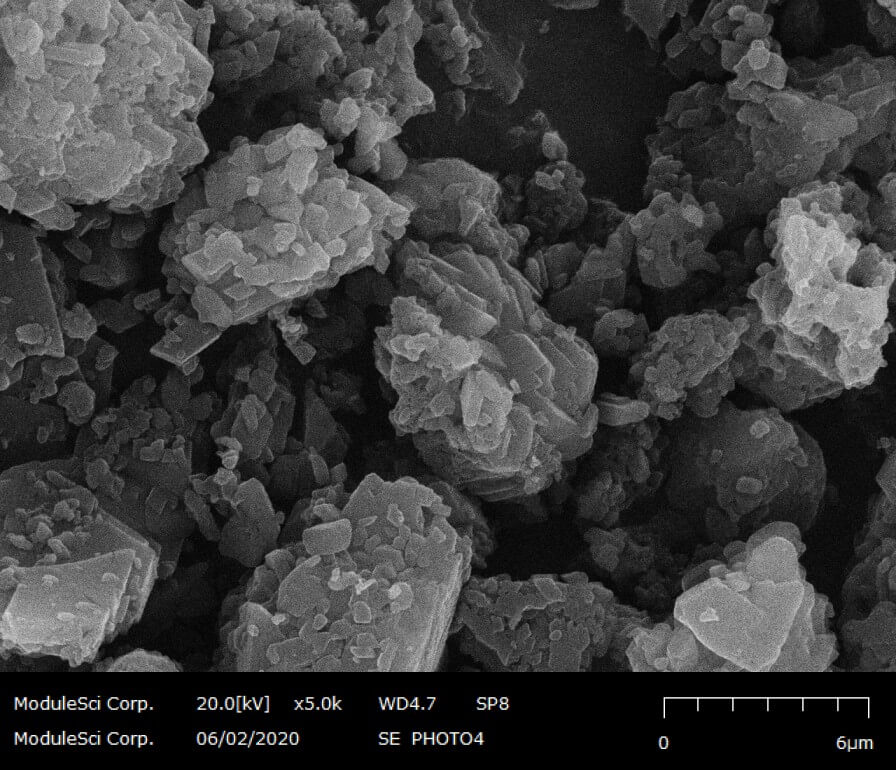

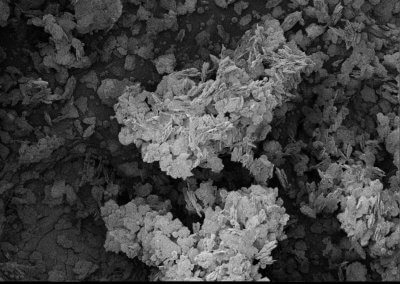

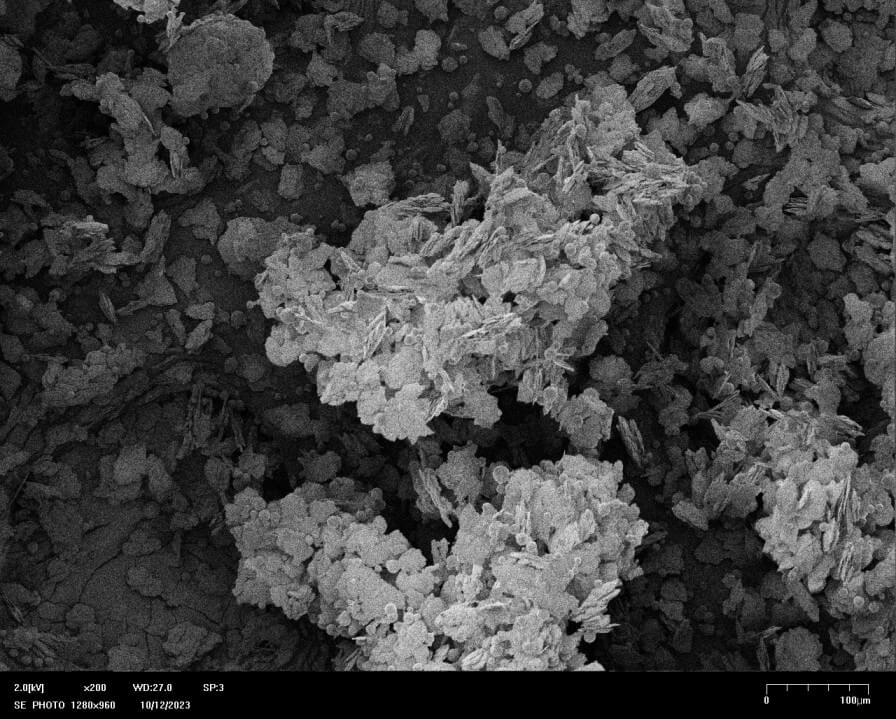

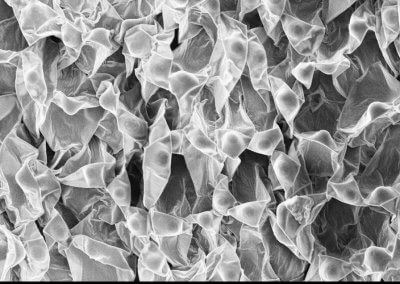

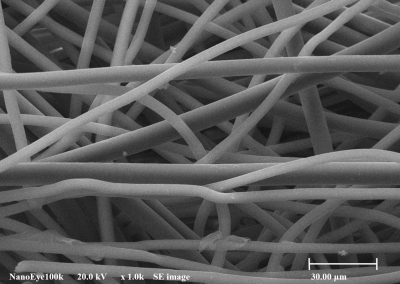

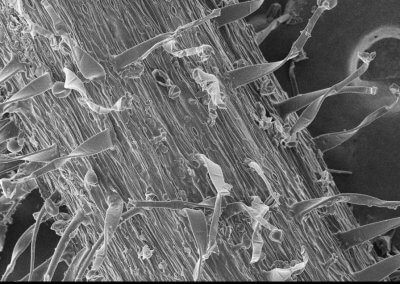

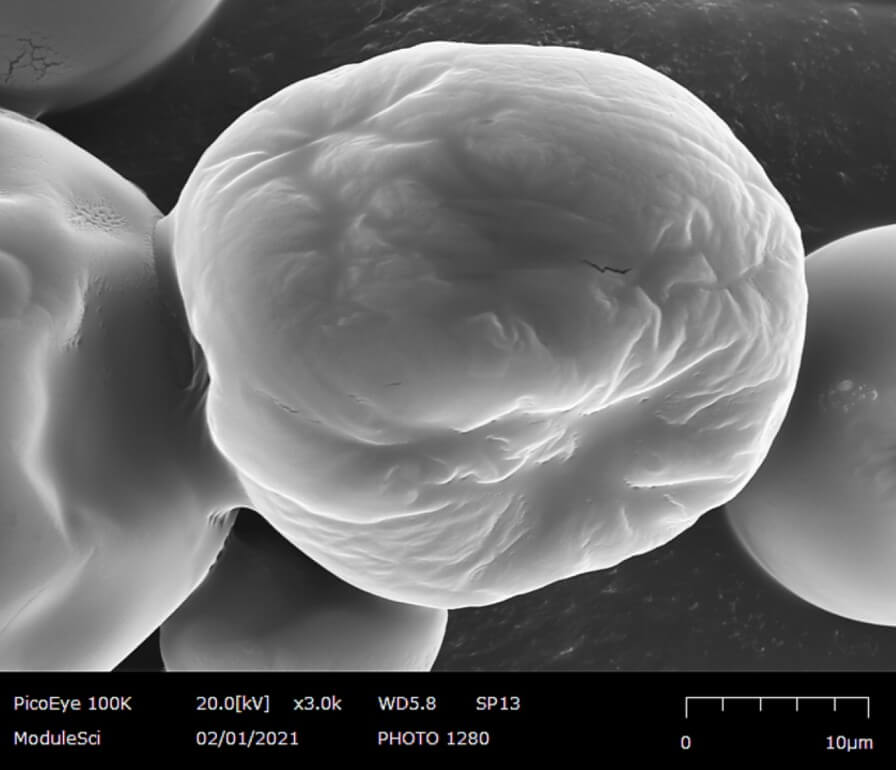

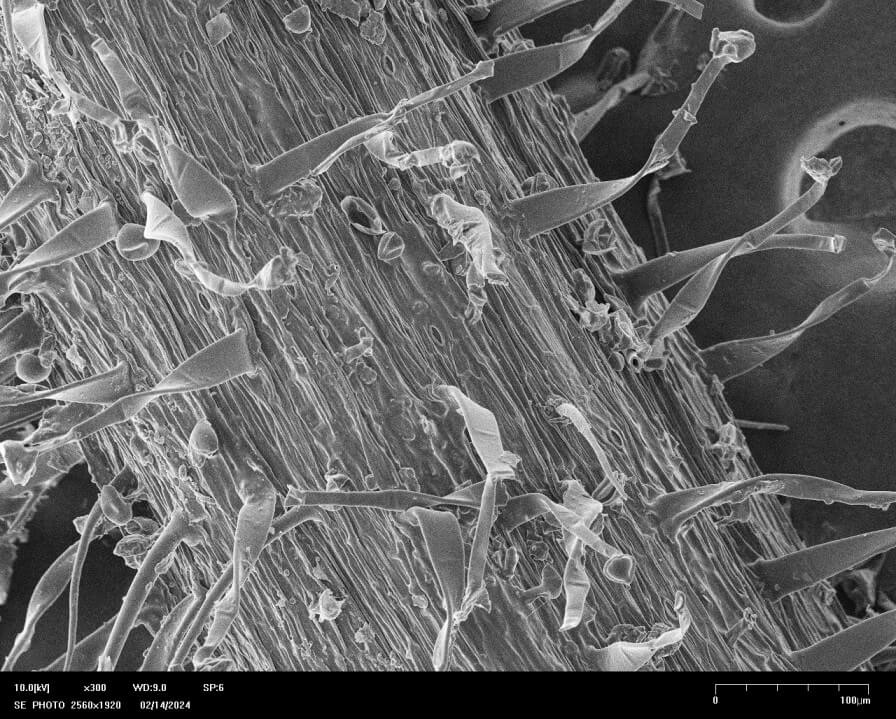

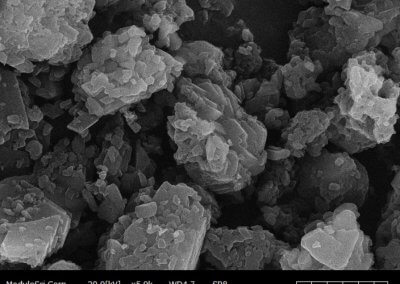

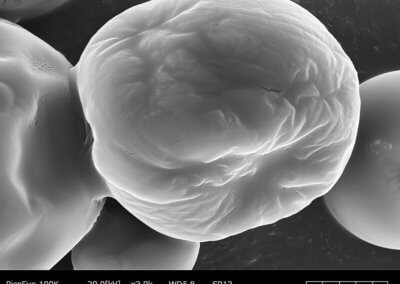

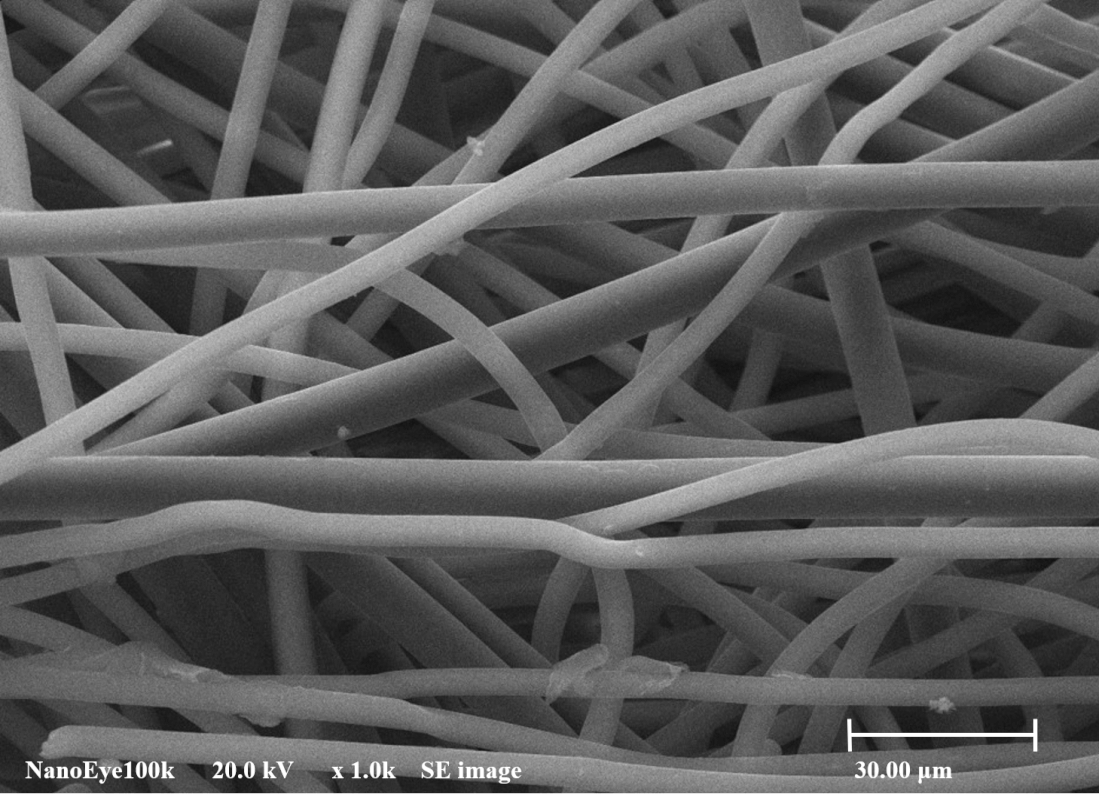

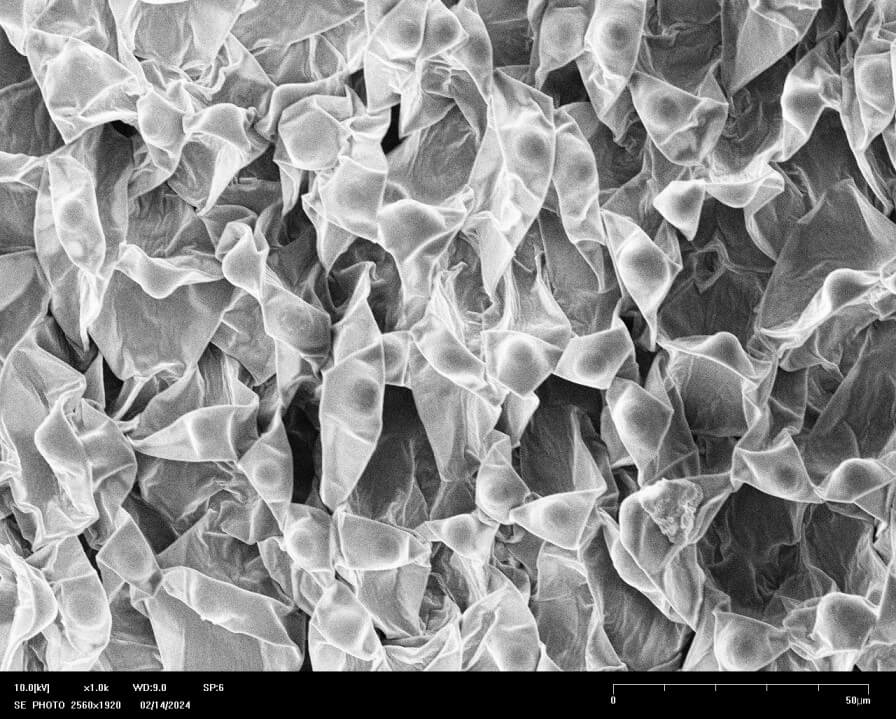

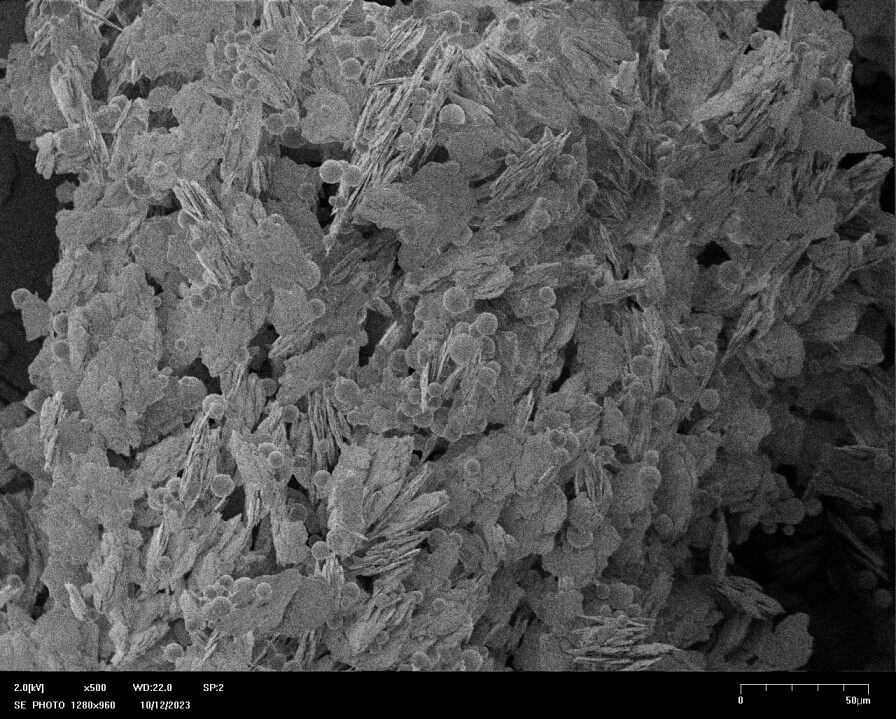

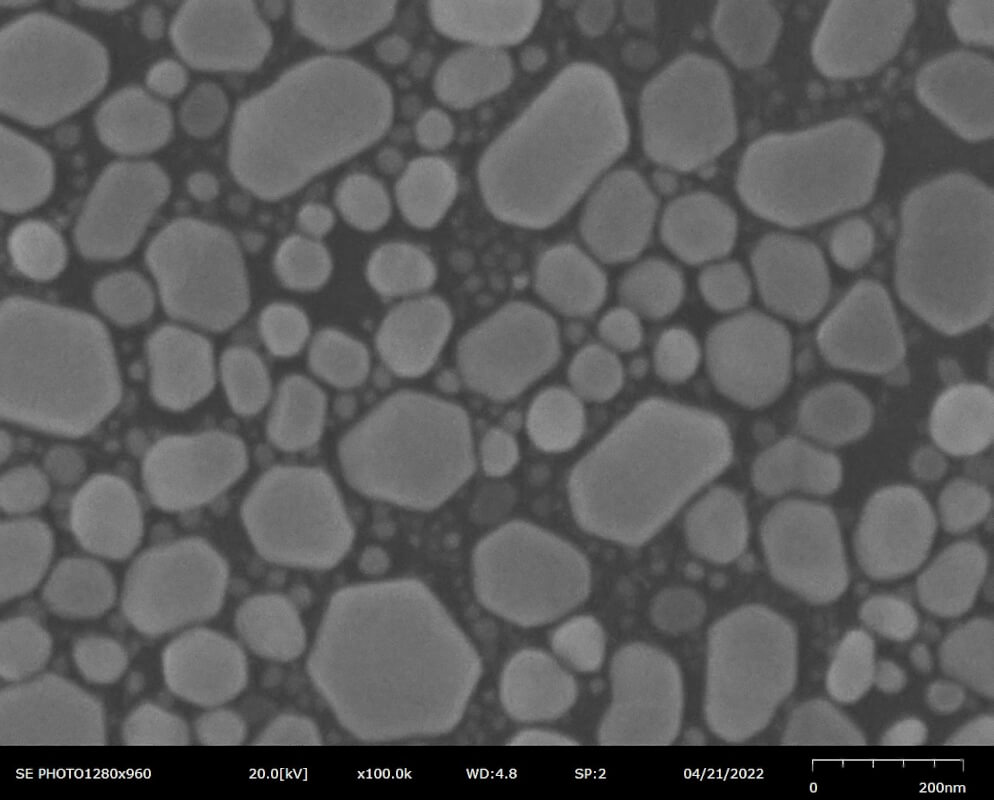

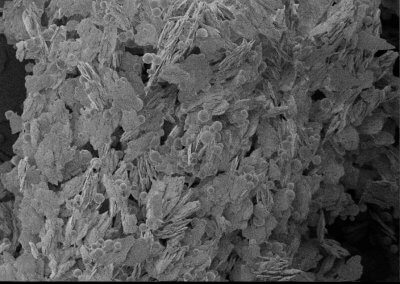

Sample images taken
If you’d like to know more about the Pico-Eye-100 Compact SEM and its application in your industry or field of research,
