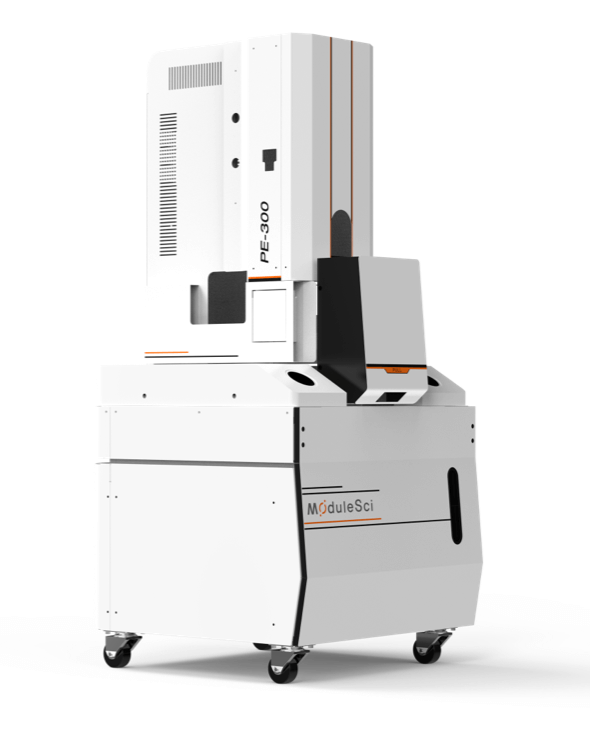

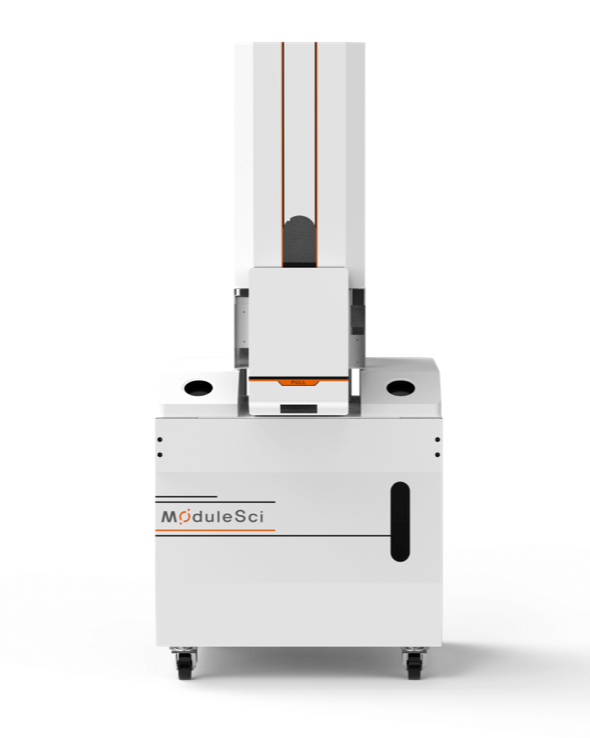

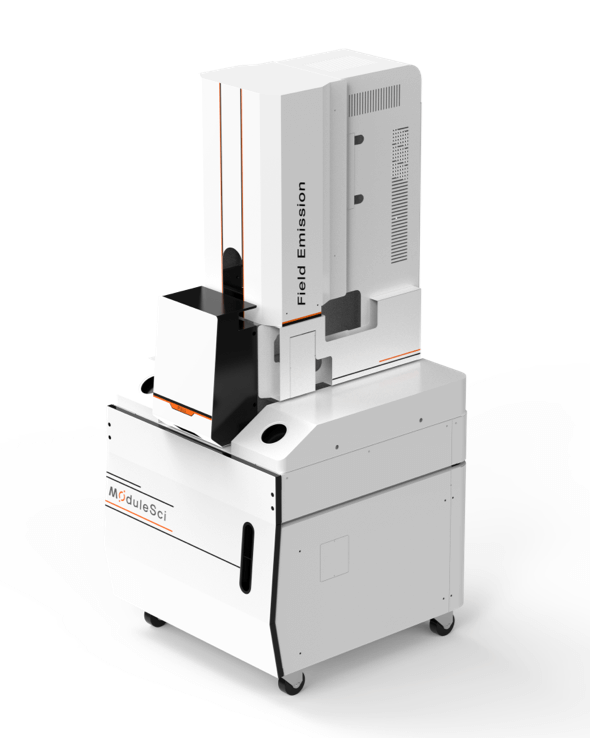

PicoEye-300 / PE-300 Series

The PE-300 is a Field Emission (Schottky) SEM with high resolution and contrast, allowing users to obtain detailed image information. The PE-300 features the innovative compact FE electron gun made of mild steel with double O-ring sealing providing fast and accurate gun axis adjustment. With superior quality and a competitive price, the PE-300 is the ideal tool when your application requires high resolution and exceptional imaging.

Features

  • Magnification 20x to 300,000x
  • Sample exchange time within 90s
  • High quality images (2.0 nm resolution)
  • Motorized 5-axis (X, Y, Z, R, T) stage
  • Vacuum maintenance until next filament replacement (after first installation of electron gun filament)
  • Easy maintenance

Options

  • SE (PE-300)
  • SE & EDS (PE-300⁺)
  • SE & BSE (PE-350)
  • SE, BSE & EDS (PE-350⁺)

Specifications

Dimension (mm) 750 x 780 x 1700 (W x L x H)
Electron source FE (Schottky)
Resolution 2.0 nm
Magnification 20 x ~ 300,000 x
Effective magnification ~ 200,000 x
Electron gun vacuum 10⁻¹⁰ torr
Accelerating voltage 0.5 ~ 30 kV
Motorized Stage Chamber type (X, Y, Z, R, T) 50, 50, 45 mm, 360°, -20°~45°
Vacuum system Rotary pump, TMP, Ion pump

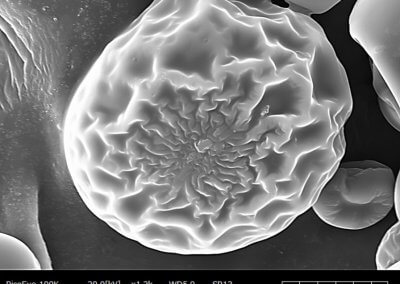

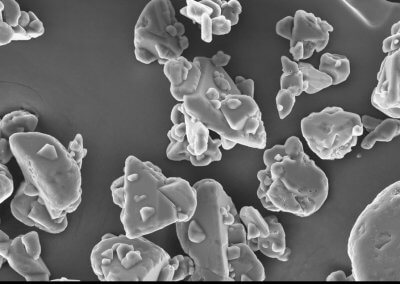

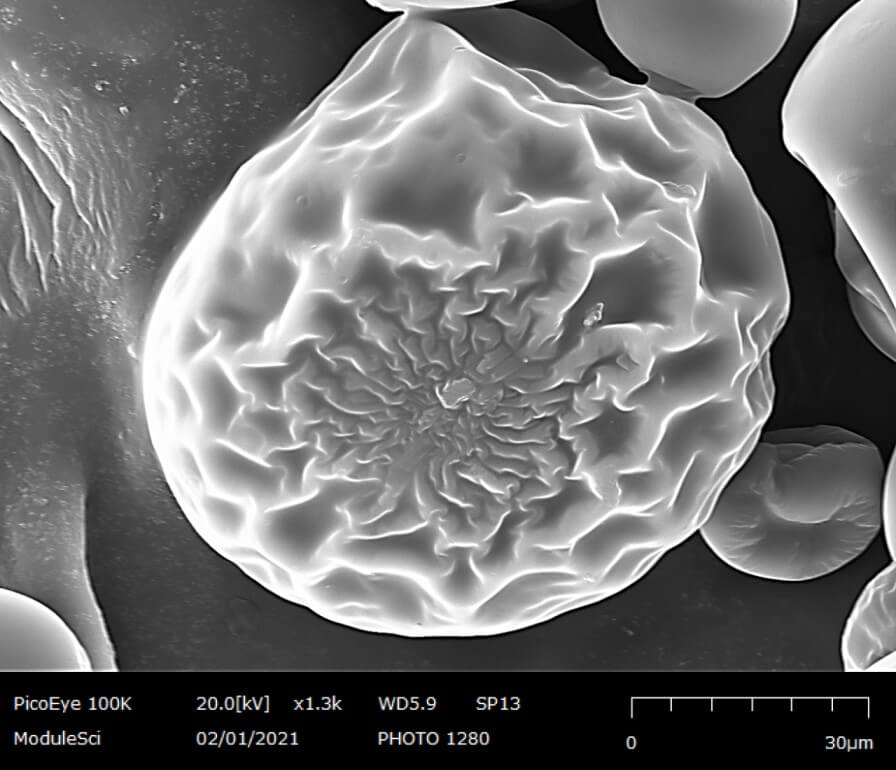

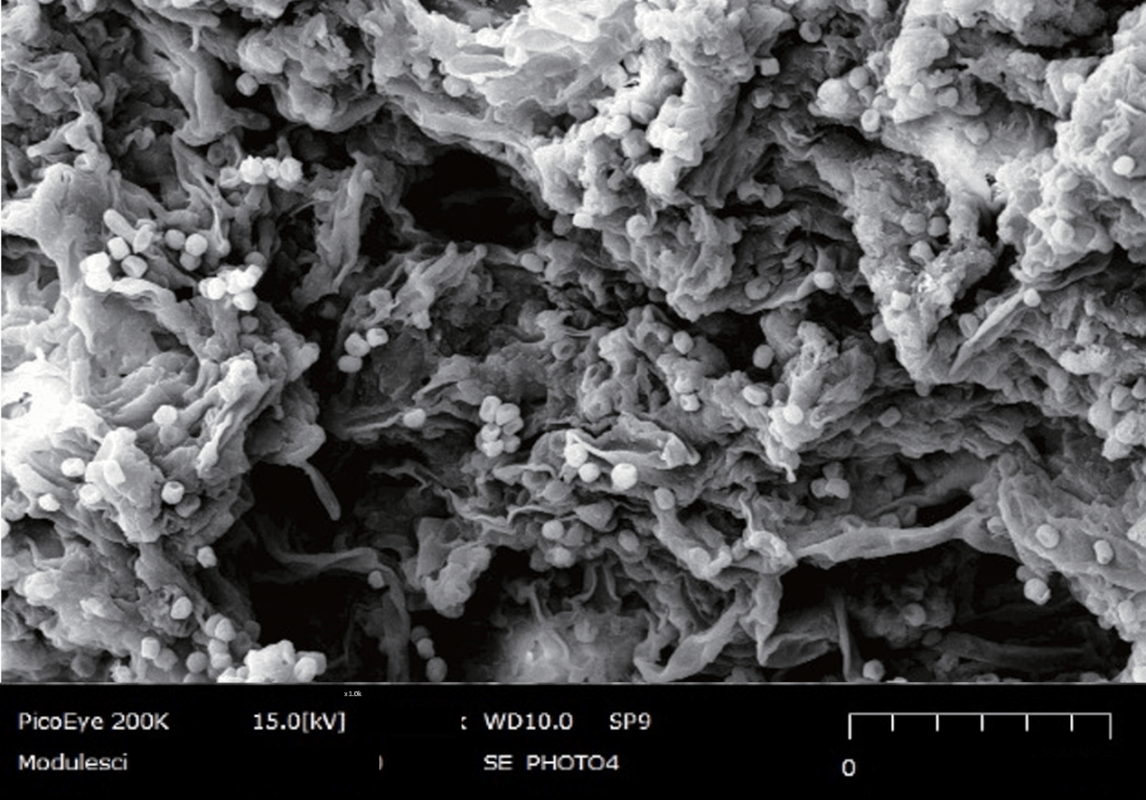

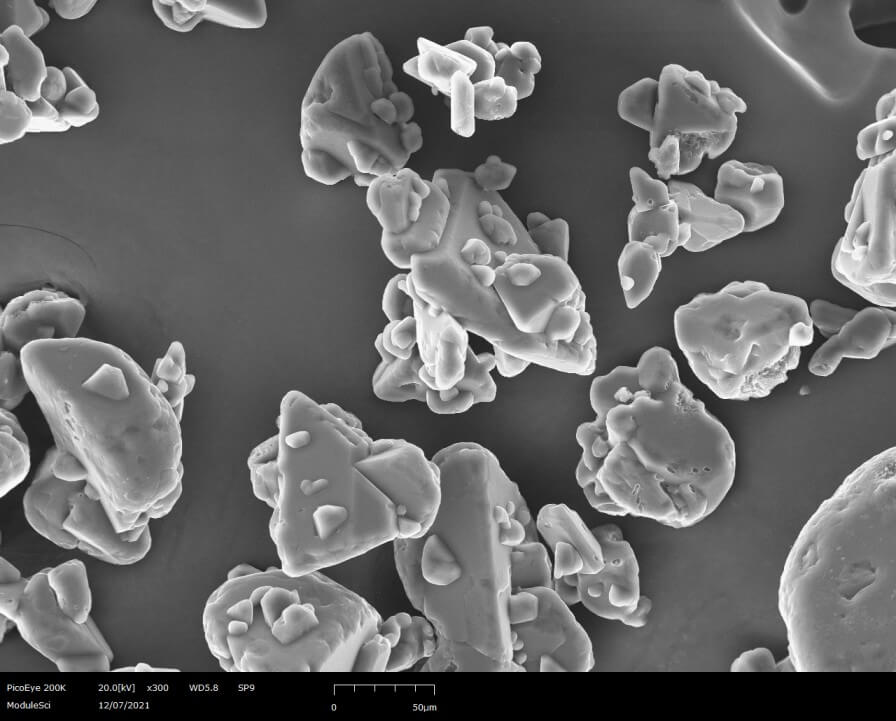

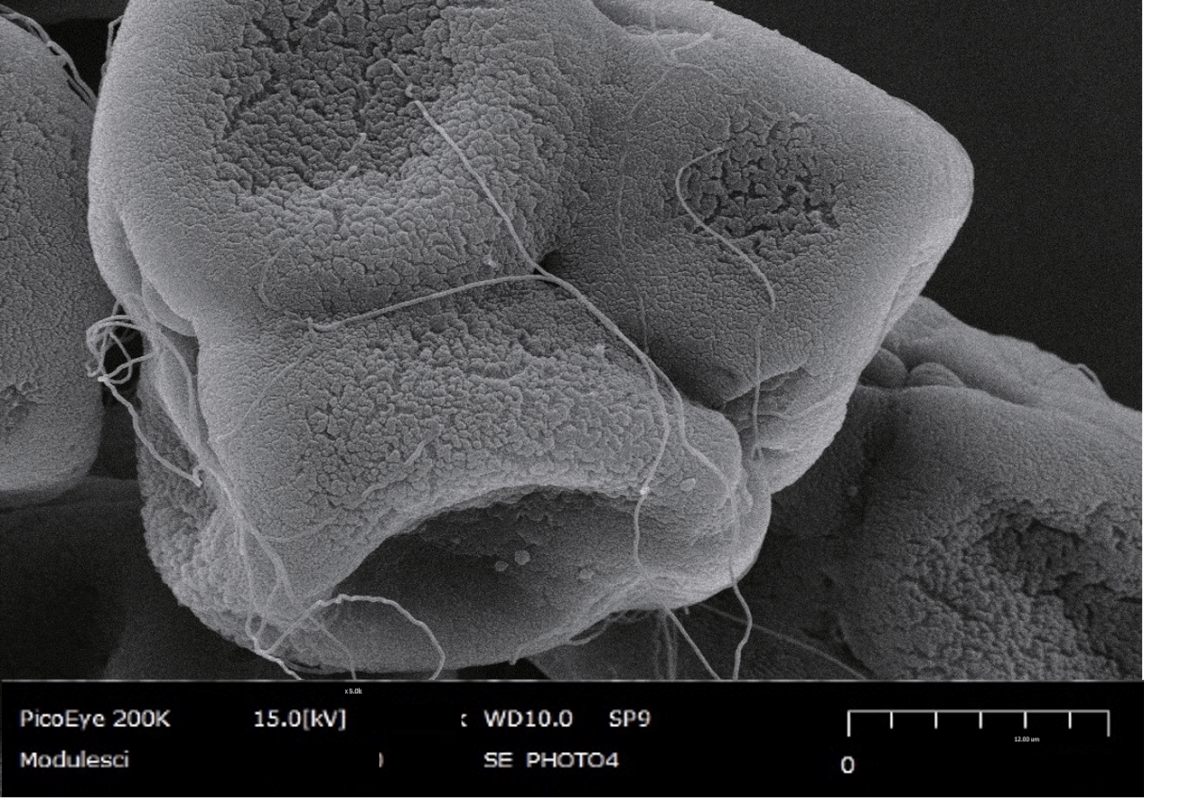

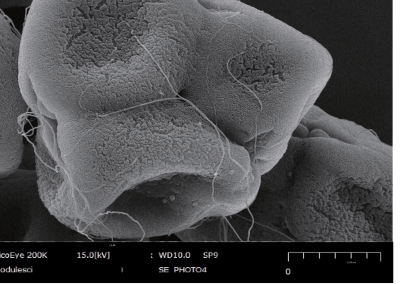

Sample images taken
