Horiba – CCD Detector

HORIBA Scientific offers a complete line of scientific cameras, including CCD, EMCCD and InGaAs array, to fulfill the most demanding scientific research. Our low-noise, high quantum efficiency and fast frame rate cameras support a wide range of application such as Raman spectroscopy, Fluorescence spectroscopy, Photoluminescence and so on…

HORIBA also offers a comprehensive line of single point detectors for steady state and lifetime measurement over a spectral range ranging from 150 nm to 40 microns.

Combined with our large choice of spectrometers and accessories, our scientist will configure with you, a custom solution for your unique requirements.

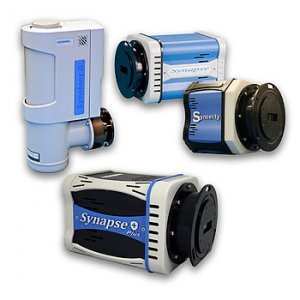

Scientific Cameras

Deep Cooled UV/Vis/NIR



TE and cryogenically cooled CCD and EMCCD scientific cameras for ultra sensitivity from 200 nm to 1100 nm

HORIBA Scientific offers a complete line of spectroscopic multi-channel detectors for scientific research. For spectral detection from UV to near-IR, two dimensional CCDs and indium gallium arsenide linear arrays offer a faster acquisition option over single point detectors with relatively high sensitivity. Coupled with HORIBA’s range of aberration corrected, flat field imaging spectrographs, custom spectroscopy packages can be assembled for a variety of applications.

Synapse InGaAs/Symphony II InGaAs

Deep Cooled NIR Scientific Cameras



TE and cryogenically cooled scientific cameras for ultra sensitivity from 800 nm to 2200 nm

HORIBA Scientific offers a complete line of spectroscopic multi-channel detectors for scientific research. For spectral detection from UV to near-IR, two dimensional CCDs and indium gallium arsenide linear arrays offer a faster acquisition option over single point detectors with relatively high sensitivity. Coupled with HORIBA’s range of aberration corrected, flat field imaging spectrographs, custom spectroscopy packages can be assembled for a variety of applications.

Syncerity VUV

Deep Cooled Vacuum Ultra Violet Scientific Cameras



High energy camera detection that can interface with a vacuum chamber for measurement down to 120 nm

The new Syncerity VUV Camera features:
• High QE in VUV Range 58% @120 nm (no ARC)
• Attachable to High Vacuum Chamber with Viton®  O-Ring, down to < 10-6  Torr
• TE-cooled to -50°C (Vacuum) or -30°C with N2 Purge Low Dark Current, Low Noise

Syncerity BI-NIR Camera

OEM CCD Camera



High energy camera detection that can interface with a vacuum chamber for measurement down to 120 nm

The TE-cooled back illuminated 2048 x 70 CCD Camera combines affordability, performance and versatility for OEM applications. With peak QE of 84% @ 700nm and 20% at 1050nm, Syncerity BI-NIR offers a relatively broad response and addresses multiple applications. In the near-NIR, this detector is a much lower cost alternative to a deep depleted CCD, with no etaloning. Syncerity’s flexible design allows our OEM-dedicated team to quickly adapt the camera for industrial requirements, ranging from alternate CCD chips to electronics

Single Channel Detectors

Large choice of PMTs, solid state, photoelectric detectors for custom spectroscopy solutions



HORIBA offers a comprehensive array of single point detectors for a wide variety of applications in spectroscopy and biomedical research. These are complete detectors including housings, power supplies and facility for cooling if necessary. Available on a stand-alone basis, or in conjunction with our monochromators and spectrographs these detectors allow you to configure a custom solution for your unique requirements. Many of our spectrographs have dual exit ports allowing you to have both a point detector for ultimate resolution and a multi-channel imaging spectrograph for high speed spectral acquisitions. HORIBA offers more choices and better specifications to ensure you can select the best components for your needs.

Detector – Hyperspectral camera and imaging sytems (HSI)

HORIBA designs and manufactures a large range of custom OEM Hyperspectral Imaging (HSI) systems that fit to your application.

UV to SWIR, from very compact and lightweight design to wide field and high resolution systems.

Standard platforms or custom designs including optics. HORIBA HSI can be fully integrated into at-line, on-line or in-line processes.

Improve your machine performance and reduce your costs by choosing an HORIBA OEM HSI rather than a retail HSI.

CoolOne

Dual Mode Analog/Photon Counting PMT

Thermo-Electrically Cooled Photomultiplier Detection System

  • NIR Photon Counting Detection to 1,010 nm
  • Detect Single Photons (switch positions)
  • Inexpensive
  • Operates in Analog or Photon Counting Modes
  • Compact Size
  • Complete Detection Sub System
  • Easy to Use
