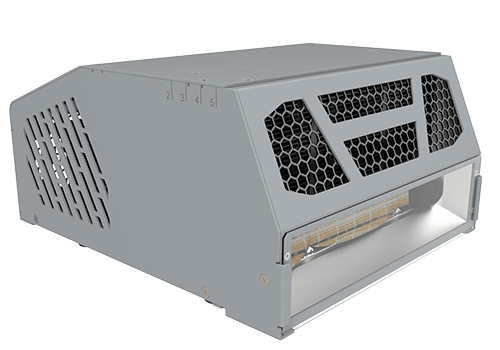

PR300
Highest Intensity & Coverage
- 3X more irradiance per vial to increase reaction rate and yield
- 5X larger coverage for running multiple reactions in parallel
- 15X higher throughput compared to popular PR160L
- Safer, longer lifespan, less heat and more environmental friendly compared to conventional light sources
Programmable
- Run, Store, Edit programs directly on PR300 fixture or through PC software
- Sync multiple units through 0-10V cable

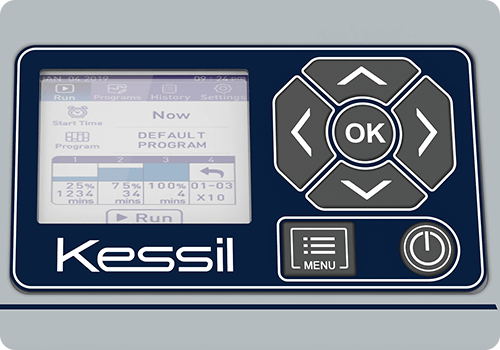

- LCD screen and control pad for quick settings
- Continuous 0-100% intensity levels for studying the functional relationship between intensity and yield
- Manual mode available for instant start and brightness adjustment
- Type A to Type C connectivity for easy data transfer
Finely Tuned Wavelengths
- Precise activation wavelengths available in 427 nm, 440 nm, 456 nm, 467 nm, 525 nm
- Narrow spectrum to avoid unwanted side reactions
- Study in depth and optimize photocatalytic reactions to save time and cost
Optimized for Consistency & Reliability
- Reliable results and repeatable reactions, perfect for commercial setups
- Consistency between every unit
- Peak wavelength within ±1 nm*
- Optical output within 3%*
*Standard Deviation
Flexibility & Safety
- Accommodates different configurations (vials, test tubes, flasks, coiled tubing, etc…)
- Add more PR300s to increase intensity and scale up experiments
- Glass cover protects LEDs from solvents and maximizes light penetration
- Easy to operate and mount with PR300 Shielding Box

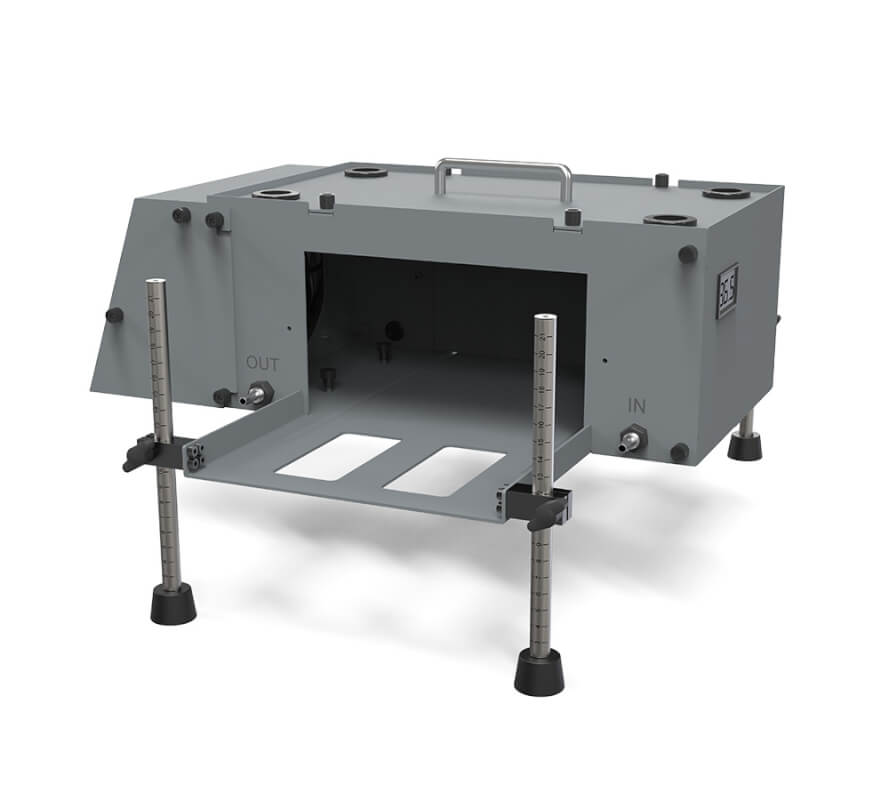

PR300 Shielding Box
Safety
- Specifically designed enclosure safely shields personnel and surrounding from intense light
- Easy assembly and durable materials for photochemical applications
Accuracy and Repeatability
- Secure mounting turns system into a parallel photoreactor
- Full adjustability to fit typical laboratory stir plate (not included)
- Engraved markings to control irradiation distance for accuracy and consistency
- Each houses 2x PR300 lamps for higher screening efficiency and scale-up synthesis
Cooling
- Powerful fan enhances airflow and keeps reactions at room temperature as much as possible
- Real-time temperature monitoring with a built-in probe
- Feedthrough for probes, liquid/gas lines for versatile reaction conditions
- Designed to work with PR300 Water Cooling System

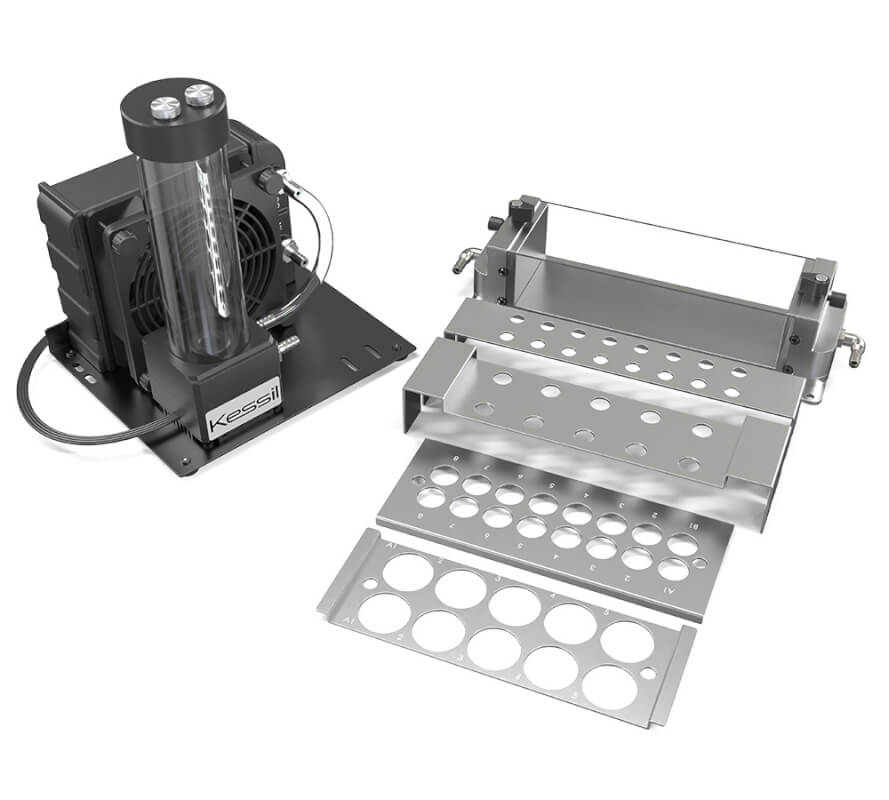

PR300 Water Cooling System
Temperature control is critical in photochemistry for achieving reproducibility and preventing unwanted side reactions caused by heat from the surrounding. The Water Cooling System provides efficient cooling of reaction vessels through heat exchange with a fan or circulating ice-cold water by immersing the radiator into an ice bath.
- Can efficiently cool to below room temperature by circulating ice-cold water
- Conveniently holds 16 x 8mL vials or 10 x 20mL vials
- Clear glass tank for maximum photon flux and durability
- Air release fitting for purging system
