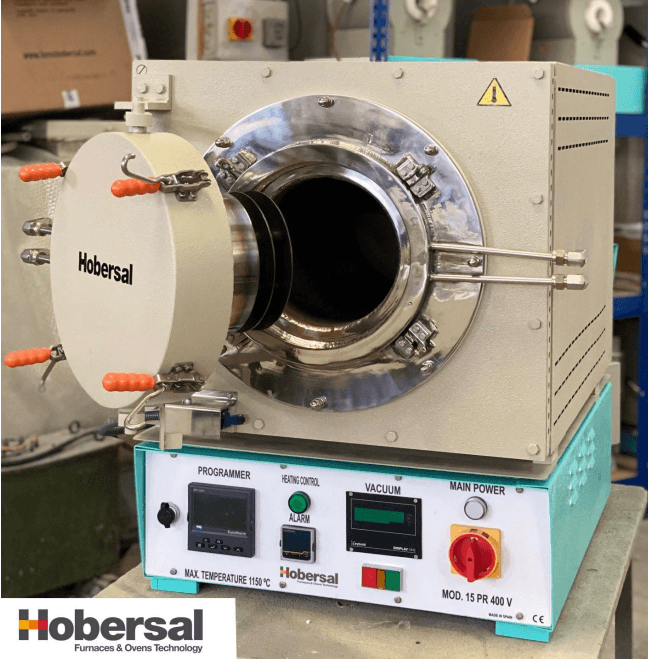

PR-V Series
Vacuum and modified atmosphere furnaces for metal sintering (3D additive)
The PR-V models are vacuum furnaces from x10-2 mbar up to x10-5 mbar and modified atmosphere that allow working in atmosphere and vacuum in the same process. Furnace chamber and door made of Inconel refractory steel with hermetic seal thanks to a water-cooled silicone gasket (NBR) on the front panel and door.
Suitable for metal and ceramic sintering for 3D printing, implants, welding… any heat treatment that requires the absence of oxygen to avoid oxidation.
Special applications such as inert debinding or sintering processes.
Standard Equipment
- Diameters Ø200, Ø300, Ø350, Ø400, Ø500mm
- Lengths from 300 mm to 2.000 mm
- Custom designs available
- Inconel refractory steel retort up to 1150ºC (1200ºC Available)
- Ramp programmer up to 64 segments
- Vacuum meter
- Over Temperature Safety Alarm (OTP)
- Gas or vacuum inlet and outlet DN 16/25
- Inconel thermocouple 3mm type K
- Refractory steel tray
- Vacuum over the entire temperature range
- Furnace shutdown in case of thermocouple breakage
- Safety contactor
- Heating pilot
- Sturdy design for continuous operation (industrial use and large production)
