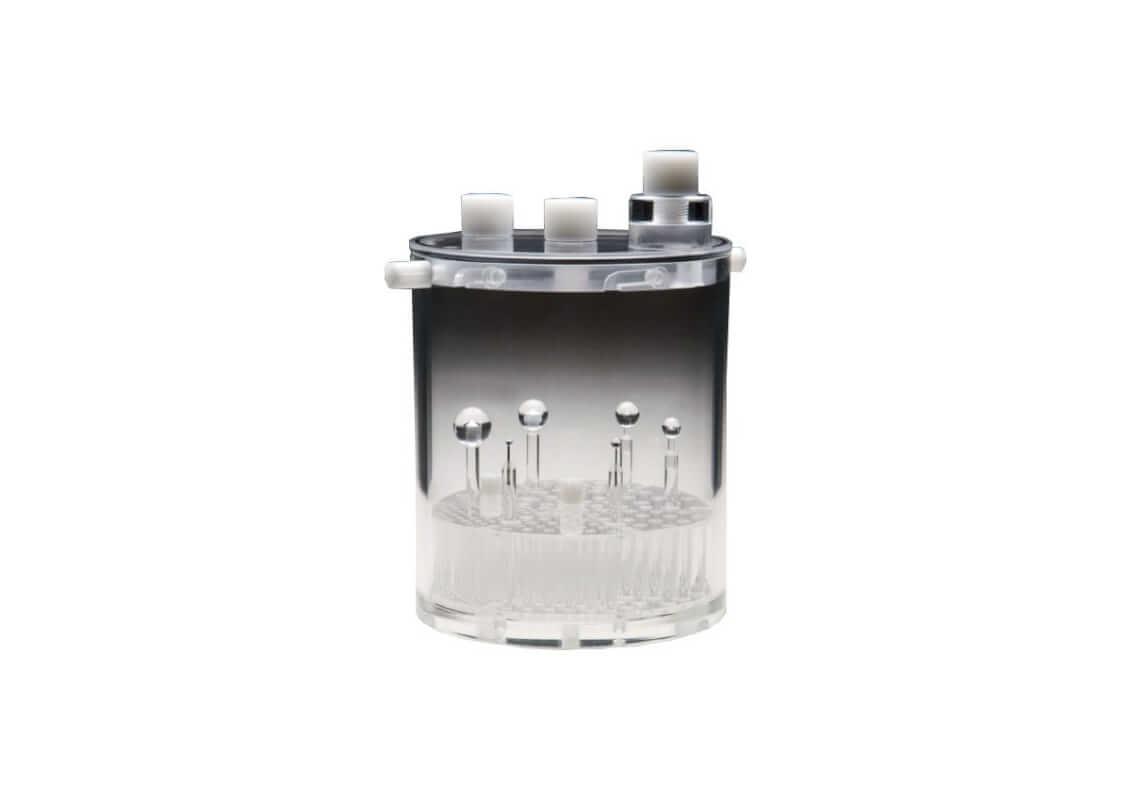

ACR Small Flangeless SPECT Phantom ™

For use with high spatial resolution SPECT systems

Anthropomorphic Phantoms

Radiation equivalent and anatomically correct realistic test subjects

The Heart/Thorax Phantom is ideal for evaluation of detectability, extent and severity of myocardial infarcts in patients. This Phantom also provides valid assessment of  mammoscintigraphy techniques.The Striatal Phantom optimizes quantitative imaging in patients, using PET or SPECT.

The Head Phantom is based upon a standard head with a calvarial cut to insert or remove the brain shell easily.  The nasal cavity and maxillary sinuses are filled with foam with a mass density of 0.23 g/cc.

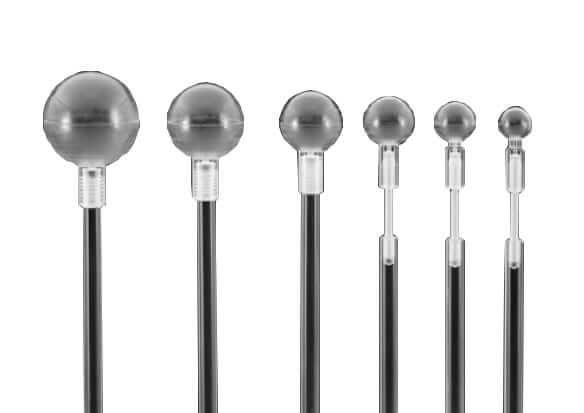

Hollow Sphere Sets (6) ™

Designed for use in all circular and elliptical ECT cylinders

  • Designed for use in all circular and elliptical ECT cylinders
  • Simulates hot or cold spherical “lesions”
  • Quantitative evaluation of spatial resolution/object size, attenuation and scatter effects
  • Evaluation of quantitative ECT reconstruction methods
  • Research

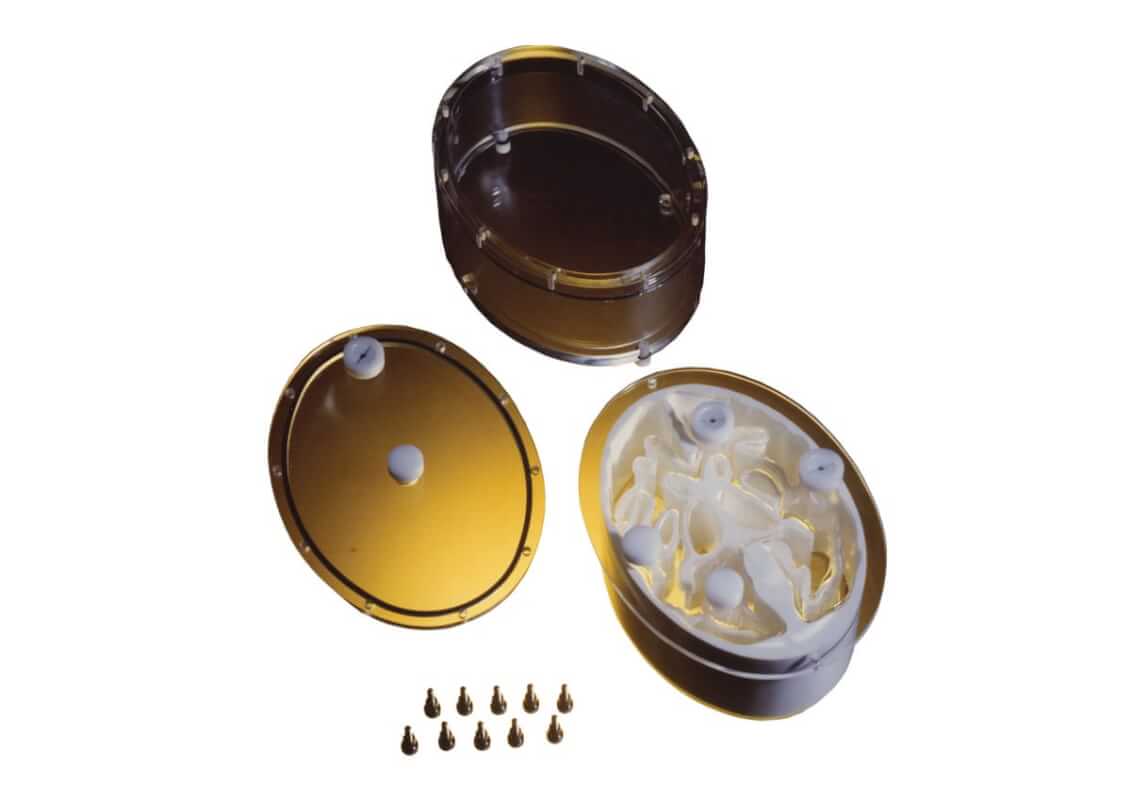

Kyoto Brain Phantom

IB-20 Phantom simulates regional cerebral perfusion studies

IB-10 Phantom provides additional Geometric Test Objects

NEMA IEC PET Body Phantom Set ™

A body phantom, a lung insert and an insert with six spheres with various sizes

  • The NEMA IEC Body Phantom Set™ consists of a body phantom, a lung insert and an insert with six spheres with various sizes
  • It is designed in accordance with the recommendations by the International
    Electrotechnical Commission (IEC) and modified by the National Electrical manufacturers Association (NEMA)
  • It is recommended for use in the evaluation of reconstructed image quality in whole body PET imaging

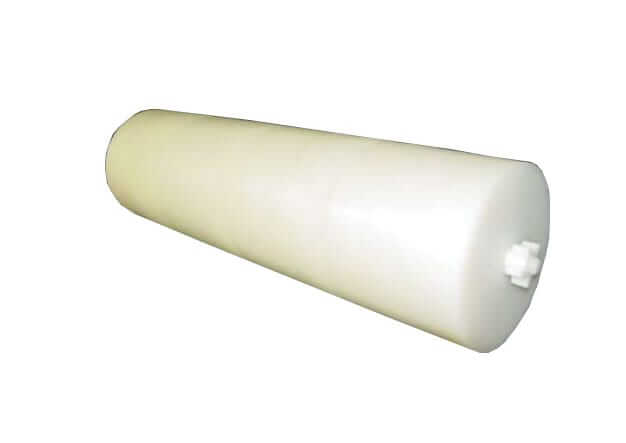

NEMA IEC PET Scatter Phantom ™

Made of four sections for ease of carrying/storage

  • The NEMA Scatter Phantom™ is designed in accordance with the recommendations by the National Electrical manufacturers Association (NEMA) to standardize the measurement of count rate performance of a scintillation camera in the presence of scatter*
  • Is a solid right circular high density polyethylene cylinder
  • Has a fillable line source holder parallel to the center axis of the cylinder and offset a distance O.D. 4.5 cm
  • The cylinder is made of four sections for ease of carrying/storage

NEMA PET Sensitivity Phantom ™

6 Concentric aluminum tubes used to detect camera sensitivity in PET

* Performance Measurements of Scintillation Cameras, NEMA Standards Publication No. NU2, National Electrical Manufacturers Association (NEMA), Washington, D.C., 2001

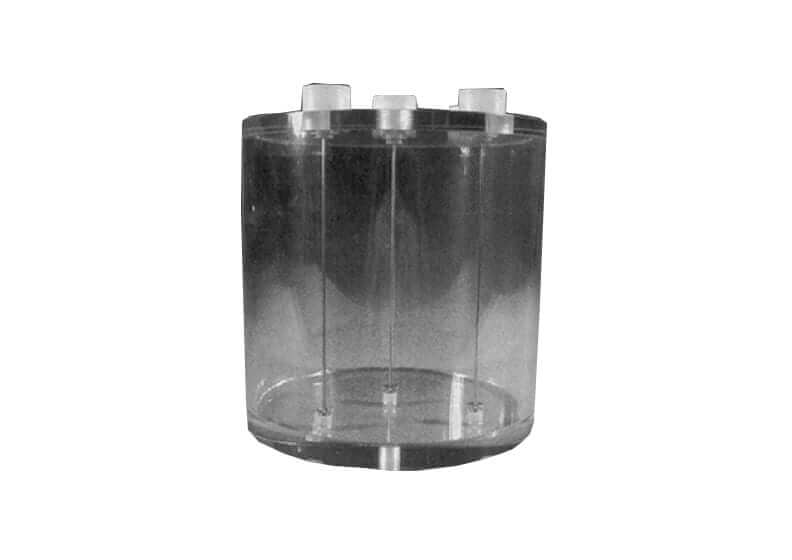

NEMA SPECT Triple Line Source Phantom ™

Designed in accordance with the recommendations by NEMA to standardize the measurement of reconstructed spatial resolution of SPECT

* Performance Measurements of Scintillation Cameras, NEMA Standards Publication No. NU 1, National Electrical Manufacturers Association (NEMA), Washington, D.C., 2007

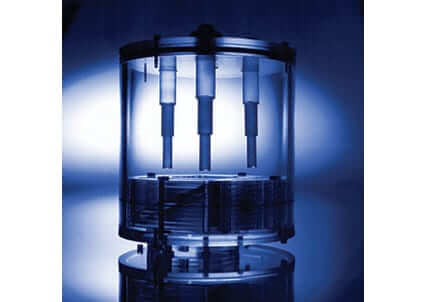

Specphan Phantom

Increases the reproducibility of the QC measurements

Key features include mounting and set-up that allow the Specphan™ phantom itself to be scanned off the table in the air, eliminating the table attenuation issue and enabling the user to position the detector(s) as close to the phantom as needed. This mount design simplifies and speeds the acquisition set-up time and increases the reproducibility of the QC measurements.

PH-24 Myocardial Phantom

The cardiac muscle phantom for PECT in Nuclear Medicine

This is the cardiac muscle phantom for PECT in Nuclear Medicine. This provides the experiment how the high integrated IR in the liver effects the SPECT image of the cardiac muscle. The cold defect can be set in the left cardiac muscle. This structure allows the phantom to create the background in each the lung field, the mediastinum and the cardiac right ventricle.
