Digital Viscometer VISCO
Compact and easily carried with one hand.
Battery operated—measurements can be taken anywhere.
Fully digital display allows for anyone to easily read results.
Capable to measure with only a small amount of sample.
Easy set-up and simple, one-button operation.
Capable of taking measurements with containers other than the included beakers, such as disposable paper cups.
Ultra Low Adapter to measure low viscosity samples (1～2,000mPa・s)
Specifications
| Model | VISCO™ |
|---|---|
| Cat.No. | 6800 |
| Measurement item | Viscosity・Temperature・Torque% |
| Range | Viscosity： A1 50 to 200,000mPa・s / 50 to 200,000cP A2 100 to 600,000mPa・s / 100 to 600,000cP A3 500 to 2,000,000mPa・s / 500 to 2,000,000cP UL 1～2,000mPa・s Torque：0.0 to 100.0％ (recommended torque: 10.0 to 100.0％) |
| Speed | 0.5 to 250rpm Number of Speeds: 20 |
| Resolution | Viscosity： Lower than 100mPa･s：0.01mPa･s 100mPa･s or higher lower than 10,000mPa･s：0.1mPa･s 10,000mPa･s or higher：1mPa･s Torque： Lower than 10.0%：0.01% 10.0% or higher：0.1% Temperature：01℃/0.1°F |
| Accuracy | Viscosity: ±1% of Maximum Viscosity Temperature: ±0.2℃ |
| Power Supply | ・LR6 / AA alkaline batteries (x4) ・AC adapter |
| Computer Communication | Output: USB – PC |
| Dimensions & Weight | Main unit：120(W)ｘ120(D)ｘ2006(H)mm/1.2kg |

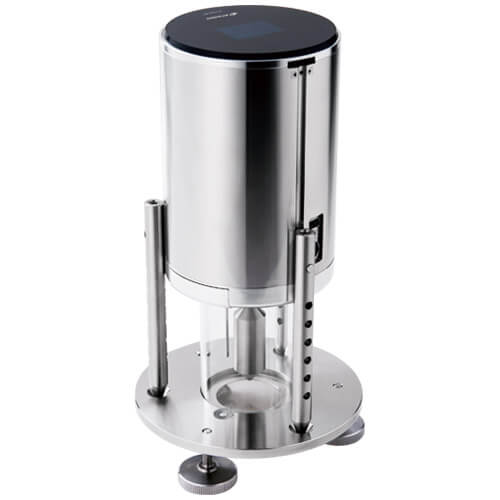

Digital Viscometer VISCO B
ATAGO’s VISCO ™ B offers a simple set up and all operations can be done by one dial button for measurements which allows anyone to easily assemble and use.
Compared to the left-handed screw type that are commonly used with traditional Type-B viscometers, a spindle for VISCO™ B can be installed by simple one touch.
Many of the traditional Type-B viscometers that use left-hand screw requires to turn and twist screws to move it up and down causing tendonitis in some cases. With VISCO™ B, height can be adjusted simply by using a lever.
Specifications
| Model | VISCO™ B (L) |
|---|---|
| Cat.No. | 6840 |
| Measurement item | Viscosity(mPa・s/cP) Temperature(℃/°F) Torque(％) |
| Range | Viscosity： 12～60,000,000mPa･S、12～60,000,000cP L1 12～600,000mPa･S、12～600,000cP L2 30～3,000,000mPa･S、30～3,000,000cP L3 48～12,000,000mPa･S、48～12,000,000cP L4 240～60,000,000mPa･S、240～60,000,000cP Torque：recommended torque: 10.0 to 100.0％ Temperature:0.0～100.0℃、32.0～212.0°F |
| Accuracy | Viscosity: ±1% of Maximum Viscosity Temperature: ±0.2℃、±0.4°F |
| Power Supply | ・LR6 / AA alkaline batteries (x4) ・AC adapter |
| Computer Communication | Output: USB – PC |
| Dimensions & Weight | φ240×(H)398mm 4.2kg |
