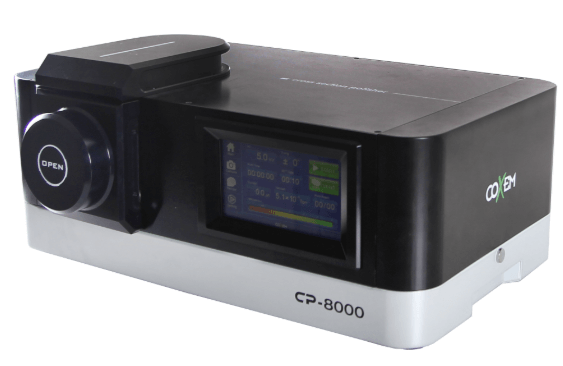

Cross Section Polisher

CP-8000 is a cross section polisher(CP) using an argon ion beam to polish surfaces of a specimen. As accelerated Ar ion beam reaches the sample in the vacuum condition, atoms of sample surface separate from it.

CP-8000 is suitable to prepare clean cross section for measurement instruments such as SEM, EDS, WDS and etc.



Specifications

Gas UsedAr(Argon) gas
Milling Speed150 μm/h (Si at 5kV)
Accelerating Voltage2~8 kV
Beam DiameterApprox. 500 μm
Working Pressure2.0 x 10-4 torr
Beam AlignmentPrecision beam alignment
using fluorescent screen
Maximum Sample Size20(W) x 12(D) x 7(H)mm
Sample Moving Range(Z: ±2mm, Y: ±2mm)
Rotation-35° ~ +35°
OperationTouch panel,(7 inch display)
Evacuation SystemTurbo-molecular pump (66L/s)
+ Rotary Pump 100L
Dimension590(W) x 440(D) x 260(H)mm
WeightMain unit 30kg,
Rotary pump 23kg
Optional AccessoriesCCD Camera for viewing
the specimen during milling

Ion Sputter Coater

Th​e ion co​ater, SPT-20, is a device used for coating conductive materials (Au, Pt, Pd, Pt-Pd) onto the sample surfaces by using DC sputtering princi​ple. Non-conductive samples are also used for observation under electron microscopes, and they are used to protect the sample surfaces from the injected electron beam and to help the electron flow. It can be used as an electrode formation of thin film type too.

1. Digital ion coater

2. Vacuum. coating. One touch coating system up to the normal pressure

3. Stable coating with coating Current Feedback function

4. Can be used with various​ metal targets

5. Uses low-noise rotary pump



Specifications

TargetAU& PT (Guarantee)
Target Size50mm
PowerAC 110-240V, 50/60Hz, 50W (except rotary pump)
Ionization Current0~9mA
Chamber Size100mm [Dia]
Dimension420(W)*220(D)*230(H)mm
