CX200 PLUS
The CX-200PLUS product is developed for simple use by users through compact design and the upgraded software Nano-station 4.0.
- Compact and Strong Performance
- 3nm Resolution
- Standard SE, BSE Detector
- Standard Chamber Scope
- Standard Panorama
- Signal Mixing
- Fully Compatible EDS
- 10 Ports for Third party

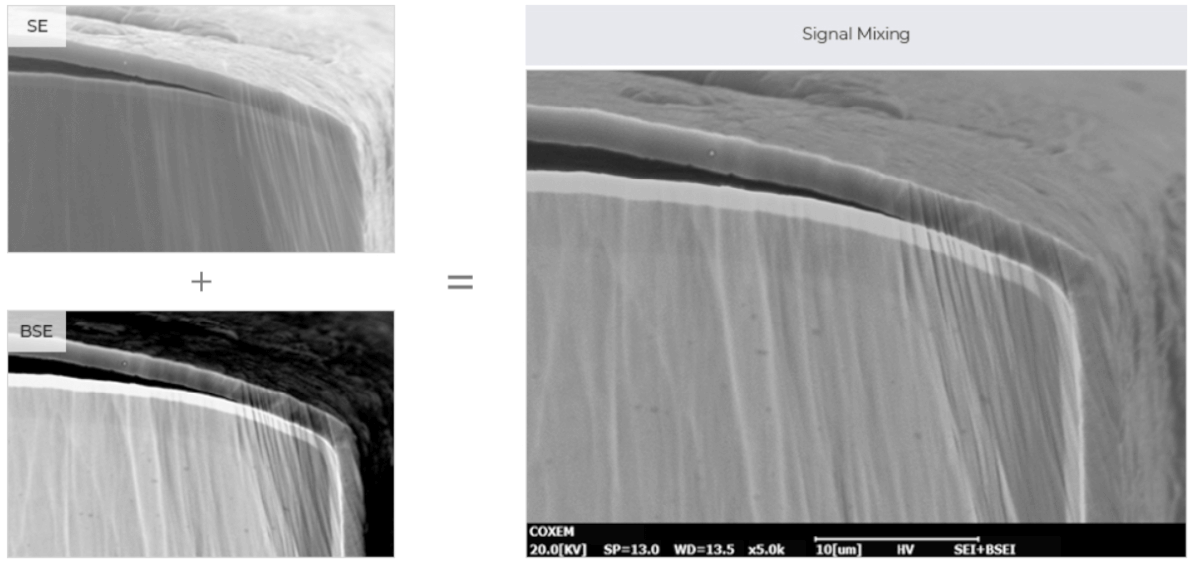

By merging SE and BSE images, each properties of both images can be observed at a glance.
Specifications
| Magnification | 15-300,000X |
|---|---|
| Spatial Resoultion | <3nm |
| Vacuum Mode | HV |
| Accleration Voltage | 1 – 30kV (adjustable in 1kV scale) |
| Electron Source | Pre-Centered Tungsten Filament |
| Detector | SED(DP) BSED(DP) |
| Sample Size | 160mm in Diameter |
| X,Y/ Z/ T Traverse R | 0-60 mm / 5-60mm/ -20 – 90º 360º |
| Features | Panorama 1.0 Auto Focus Qick & Easy AutoB/C Auto Filament Auto Start Duplex Navigation Signal Mix Dual Display & Save Line Profile Line Measure Image Filtering Chamber Scope Focus, Filament, Brightness/Contrast |
| Automation | Focus, Filament, Brightness/Contrast |
| Data Output Format | jpg, tiff, BMP |
| Dimensions | 640 x 682 x 1430 mm |
| Weight | 230 kg |
| OPTIONS | STEM CoolStage Panorama 2.0 EDS (Oxford, Bruker) |
