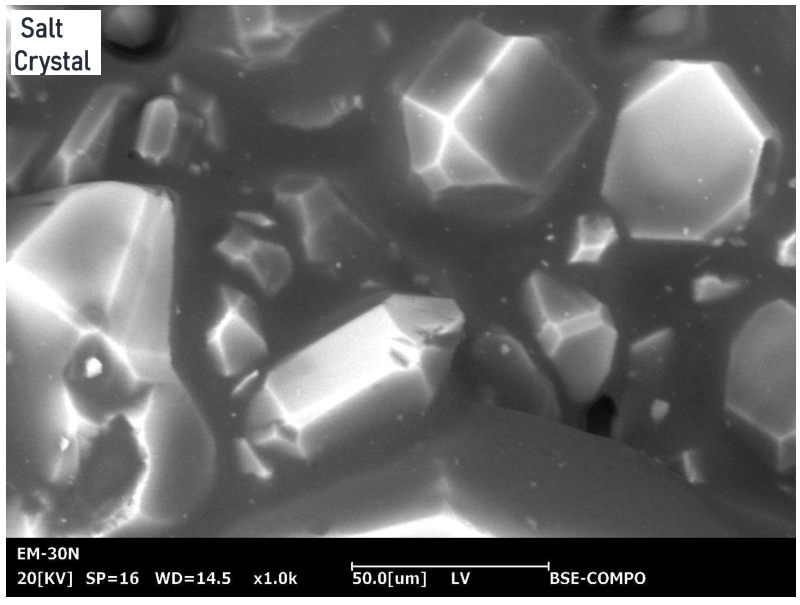

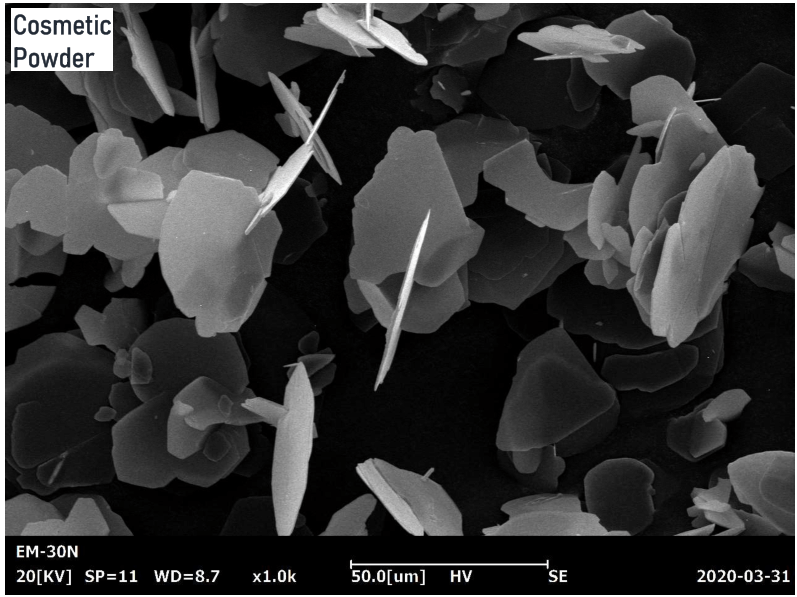

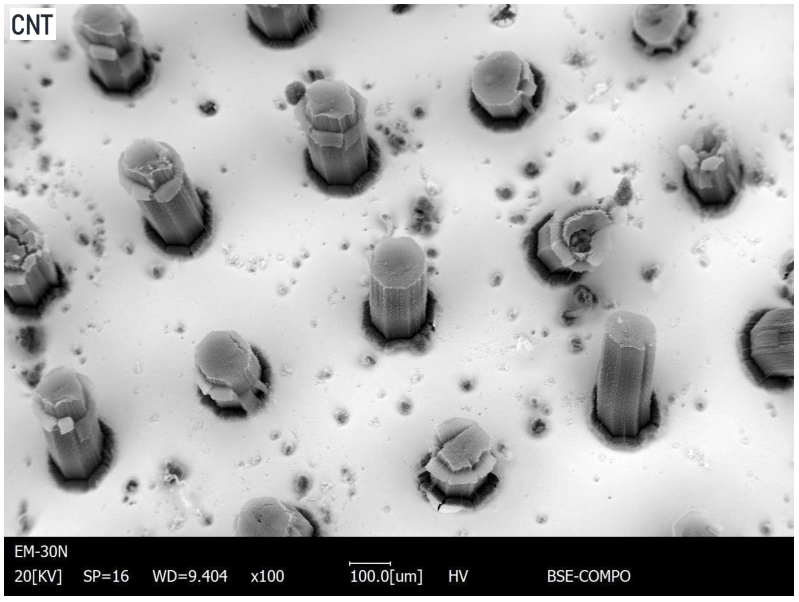

EM-30N

EM-30N, which is a product of COXEM ’s steady investment for technology and development with a view to the era of nano-mechatronics, can deliver clear images without noise even at high magnification and scan an even wider area with its panorama feature. Also, its full compatibility with EDS delivers optimized performance. Satisfactory both in performance and price, EM-30N will shine in all research areas and deliver superb results to the development and utilization of advanced technology.



Specifications

Magnification 20-150,000X
Spatial Resoultion <5nm
Vacuum Mode HV/LV (Standard)
Accleration Voltage 1 – 30kV (adjustable in 1kV scale)
Electron Source Pre-Centered Tungsten Filament
Detector SED(DP)
BSED(DP)
EDS Option
Sample Size 70mm (W) x 45mm (H)
X-Y/T Traverse 35x35mm / 0 – 45º
Features Panorama 1.0
Auto Focus
Qick & Easy AutoB/C
Auto Filament
Auto Start
Duplex Navigation
Signal Mix
Dual Display & Save
Line Profile
Line Measure
Image Filtering
Color Measurment
Focus, Filament, Brightness/Contrast
Automation Focus, Filament, Brightness/Contrast
Data Output Format jpg, tiff, BMP
Dimensions 400 x 600 x 550 mm
Weight 85 kg
OPTIONS STEM
CoolStage
Panorama 2.0
30mm Active Size Compact Type EDS (Particle Analysis)
30mm Active Size Compact Type EDS (MPO included)

EM-30 PLUS

A high-resolution Tabletop Scanning Electron Microscope (SEM) with specifications and capabilities not matched by any other SEM in its price range. After evaluating the EM-30 Plus your search will be over to find the best compact SEM available.  The companion models of the EM-30AXPlus include integrated EDS elemental micro-analysis.

Specifications

 EM-30Plus  EM-30AXPlus

 Magnification

                                                 20-150,000X

 Spatial Resoultion

                                                      <5nm

 Accleration Voltage

                               1 – 30kV (adjustable in 1kV scale)

 Electron Source

                              Pre-Centered Tungsten Filament

 Detector

 SE, BSE  SE, BSE, EDS

 Sample Size

                                      70mm (W) x 45mm (H)

 X-Y/T Traverse

                                        35x35mm / 0 – 45º

 Features

 Panorama 1.0

Signal Mix

Auto Focus

Qick & Easy AutoB/C

Auto Filament Saturation

Dual Display & Save

Line Profile

Line Measure

Image Filtering

Color Measurement

 Automation

 Focus, Filament, Brightness/Contrast

 Data Output Format

 jpg, tiff, BMP

 Dimensions

 400 x 600 x 550 mm

 Weight

 85 kg

 Options

Low Vacuum

CoolStage

Panorama 2.0

 30mm Active Size Compact Type EDS (Particle Analysis)

 30mm Active Size Compact Type EDS (MPO included)

    EM-30

    A high-resolution Tabletop Scanning Electron Microscope (SEM) with specifications and capabilities not matched by any other SEM in its price range. After evaluating the EM-30 Series your search will be over to find the best compact SEM available.

    Specifications

    EM-30 EM-30AX

    Magnification

                                                     20-100,000X

    Spatial Resoultion

                                                            <15nm

    Accleration Voltage

                                    1 – 30kV (adjustable in 1kV scale)

    Electron Source

                                    Pre-Centered Tungsten Filament

    Detector

    SE SE, EDS

    Sample Size

    70mm (W) x 45mm (H)

    X-Y/T Traverse

    35x35mm / 0 – 45º

    Features

    Measurement Tool

    Remote Control

    Automation

    Focus, Filament, Brightness/Contrast

    Data Output Format

    jpg, tiff, BMP

    Dimensions

    400 x 600 x 550 mm

    Weight

    85 kg

    Options

    BSED

    CoolStage

    30mm Active Size Compact Type EDS (Particle Analysis)

    30mm Active Size Compact Type EDS (MPO included)
