Extending the boundaries of industrial imaging, Photon etc. has developed affordable SWIR cameras sensitive from 800 nm to 2.9 µm. Using a sensitive InGaAs or HgCdTe (MCT) FPA, ZEPHIR™ collects images up to an astounding 340 frame-per-second rate while reaching unrivalled low noise levels with the integration of a four-stage TE cooler. Our BOREA™ line uses a Stirling micro cooler and has lower noise levels than its TE cooled competitors. Initially designed for demanding faint flux applications such as hyperspectral imaging, our cameras are well-suited for spectroscopy, astronomy or industrial applications in quality control and sorting.

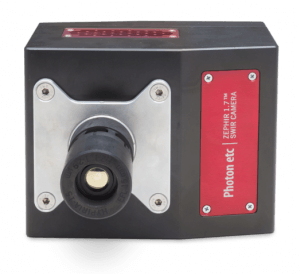

ZephIR™ 1.7 is Photon etc.’s affordable science-grade near-infrared InGaAs camera, highly sensitive from 0.9 to 1.7 µm. A four-stage TE cooler, deep-cooling at -80°C, allows reaching unrivalled low-noise levels even at an astounding 220 frame-per-second rate.

  • 220 frame-per-second

  • 4-stages TEC

  • Low noise level

  • InGaAs FPA

  • Optimal from 0.8 to 1.7 µm

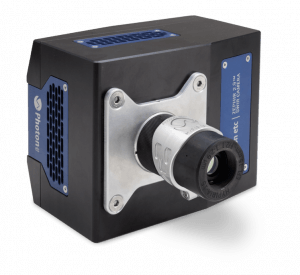

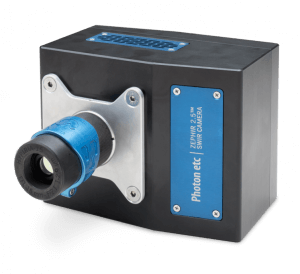

ZephIR™ 2.5 is Photon etc.’s affordable scientific-grade SWIR HgCdTe (MCT) camera, highly sensitive from 0.85 to 2.5 µm. A four-stage TE cooler, deep-cooling at -80°C, provides unrivalled low-noise levels even at an astounding 340 frame-per-second rate.

  • 340 frame-per-second

  • 4 stages TEC

  • Low noise level

  • HgCdTe (MCT) FPA

  • 0.85 to 2.5 µm

ZephIR™ 2.9 is Photon etc.’s affordable scientific-grade SWIR HgCdTe (MCT) camera, highly sensitive from 0.85 to 2.9 µm. A four-stage TE cooler, deep-cooling at -80°C, provides unrivalled low-noise levels even at an astounding 340 frame-per-second rate.

  • 340 frame-per-second

  • 4 stages TEC

  • Low noise level

  • HgCdTe (MCT) FPA

  • 0.85 to 2.9 µm

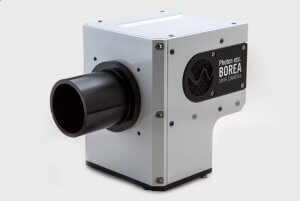

Photon Etc. has developed a new affordable deep-cooled SWIR camera sensitive from 0.85 μm to 2.5 μm. Using a rotary Stirling micro cooler, BOREA reaches lower noise level then all of its TE cooled competitors.

  • 340 frame-per-second

  • Rotary Stirling micro-cooler

  • Low noise level

  • HgCdTe (MCT) FPA

  • 0.85 to 2.5 µm

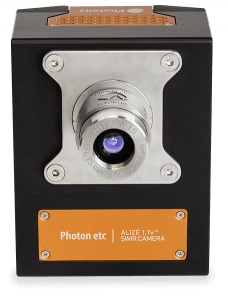

Continuing its push to extend the boundaries of scientific and industrial imaging, Photon etc. presents its high performance, quality for value, air-cooled SWIR camera line. Based on a sensitive InGaAs FPA and integrating a four-stage TE cooler, Alizé™ 1.7 delivers an astounding 190 frame-per-second rate while reaching very low noise levels. First designed for demanding faint-flux applications such as small animal imaging in the second biological window, these cameras also bring new capabilities for industrial applications in quality control and sorting.

  • 190 frame-per-second

  • 4-stages TEC

  • Low noise level

  • InGaAs FPA

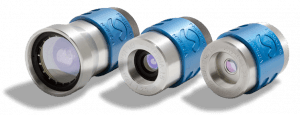

The HypIRia are telecentric objective lenses optimized for 1 to 2.9 µm. They deliver high throughput for high-quality imaging. Three different focal lengths are available: 11 mm (HypIRia 11), 15 mm (HypIRia 15) and 25.3 mm (HypIRia 25). Those lenses possess a broadband anti-reflective coating to reduce stray light and maximize the throughput.

  • Optimized for 1 – 2.9 µm

  • C-Mount

  • Anti-reflective broadband coating

  • Highly resistant to a harsh environment
