Disk sources are designed for use as reference sources.

Typical applications include: teaching, training, research, radiation protection, and up-and-coming technologies.

Radioactive material handling license issued by the Philippine Nuclear Research Institute is a requirement prior to the sale of all sources, even exempted quantity ones.

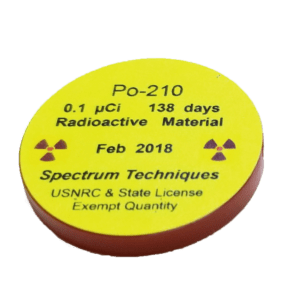

ALPHA DISK SOURCES

Alpha disk sources is designed for use as reference sources. The radioacitve material is chemically plated on to the surface of a silver disk that is mounted at the bottom of the well of a Plexiglas® disk. The completed sources are unsealed and offered in two sizes: 1.0” x 0.125” and 2.0” x 0.125”.

NuclideMinimum ActivityMaximum Activity
Polonium 2100.05 µCi (1.85 kBq)0.1 µCi (3.7 kBq)

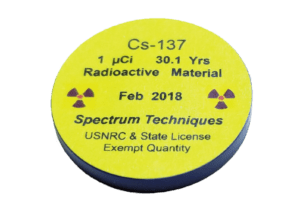

BETA/GAMMA DISK SOURCES

Beta/Gamma disk sources are designed for use as reference sources. Each source is constructed using a Plexiglas® disk and is offered in two sizes: 1.0” x 0.125” and 2.0” x 0.125”.

All beta/gamma disk sources have an uncertainty of ± 20% of the labeled activity  unless calibrated (± 5%) for an additional cost. Activities will not exceed the U.S. NRC Exempt Quantity limit.



NuclideMinimum ActivityMaximum Activity
Barium 1330.1 µCi (3.7 kBq)10 µCi (370 kBq)
Cadmium 1090.1 µCi (3.7 kBq)10 µCi (370 kBq)
Cesium 1370.05 µCi (1.85 kBq)10 µCi (370 kBq)
Cobalt 570.1 µCi (3.7 kBq)100 µCi (3700 kBq)
Cobalt 600.05 µCi (1.85 kBq)1 µCi (37 kBq)
Europium 1520.1 µCi (3.7 kBq)1 µCi (37 kBq)
Manganese 540.1 µCi (3.7 kBq)10 µCi (370 kBq)
Sodium 220.1 µCi (3.7 kBq)10 µCi (370 kBq)
Strontium 900.05 µCi (1.85 kBq)0.1 µCi (3.7 kBq)
Thallium 2040.1 µCi (3.7 kBq)10 µCi (370 kBq)
Zinc 650.1 µCi (3.7 kBq)10 µCi (370 kBq)

RSS2 – GM RESOLVING TIME SOURCE SET

The RSS2 source set is used for determining the resolving time of GM counters. It consists of 3 half-disks: 2 contain Tl-204 and 1 is left blank (contains no material).

Each disk has an uncertainty of ± 20% of the labeled activity. Activities will not exceed the U.S. NRC Exempt Quantity limit.

Item NumberDescription
RSS2(2) Tl-204, 5 μCi (185 kBq), sealed half-disk sources
(1) Blank half-disk

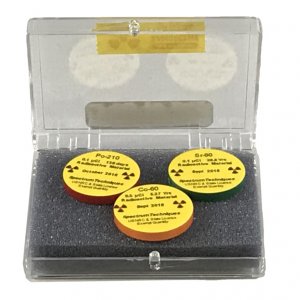

RSS3 – ALPHA/BETA/GAMMA, THREE SOURCE SET

The RSS3 source set is designed for demonstrating the basic characteristics of radiation. It consists of 3 disk sources: 1 gamma emitter, 1 beta emitter, and 1 alpha emitter.

Each disk has an uncertainty of ± 20% of the labeled activity. Activities will not exceed the U.S. NRC Exempt Quantity limit.

Item NumberDescription
 RSS3(1) Co-60, 1 μCi (37 kBq), sealed disk (1″ diameter)
(1) Sr-90, 0.1 μCi (3.7 kBq), sealed disk (1″ diameter)
(1) Po-210, 0.1 μCi (3.7 kBq), unsealed disk (1″ diameter)

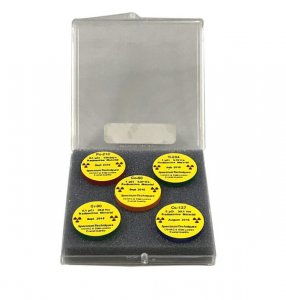

RSS5 – ALPHA/BETA/GAMMA, FIVE SOURCE SET

The RSS5 source set is designed for demonstrating the basic characteristics of radiation. It consists of 5 disk sources: 2 gamma emitters, 2 beta emitters, and 1 alpha emitter.

Each disk has an uncertainty of ± 20% of the labeled activity. Activities will not exceed the U.S. NRC Exempt Quantity limit.



Item NumberDescription
RSS5(1) Co-60, 1 μCi (37 kBq), sealed disk (1″ diameter)
(1) Cs-137, 5 μCi (185 kBq), sealed disk (1″ diameter)
(1) Tl-204, 1 μCi (37 kBq), sealed disk (1″ diameter)
(1) Sr-90, 0.1 μCi (3.7 kBq), sealed disk (1″ diameter)
(1) Po-210, 0.1 μCi (3.7 kBq), unsealed disk (1″ diameter)

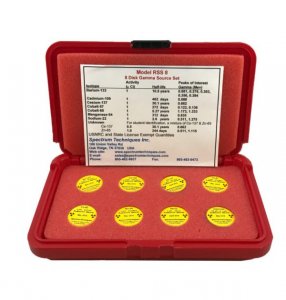

RSS8 – EIGHT GAMMA SOURCE SET

Designed for gamma spectroscopy, the RSS8 contains eight different gamma emitting isotopes covering the entire energy range from 32 keV to 1333 keV.

Each disk source has an uncertainty of ± 20% of the labeled activity unless calibrated (± 5%) for an additional cost. Activities will not exceed the U.S. NRC Exempt Quantity limit.



Item NumberDescription
RSS8(1) Ba-133, 1 μCi (37 kBq), sealed disk (1″ diameter)
(1) Cd-109, 1 μCi (37 kBq), sealed disk (1″ diameter)
(1) Co-57, 1 μCi (37 kBq), sealed disk (1″ diameter)
(1) Co-60, 1 μCi (37 kBq), sealed disk (1″ diameter)
(1) Cs-137, 1 μCi (37 kBq), sealed disk (1″ diameter)
(1) Mn-54, 1 μCi (37 kBq), sealed disk (1″ diameter)
(1) Na-22, 1 μCi (37 kBq), sealed disk (1″ diameter)
(1) Mixed “Unknown”, Cs-137, 0.5 μCi (18.5 kBq), Zn-65, 1 μCi (37 kBq), sealed disk (1″ diameter)
