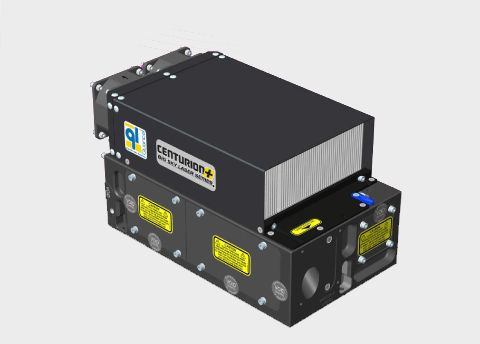

Centurion + (50 mJ)

The Centurion + is an air cooled, diode pumped laser, delivering 50 mJ energy in nanosecond pulses at repetition rates up to 100 Hz. Diode pumping eliminates the need of water, reduces size, improves reliability, and eliminates most maintenance requirements.

  • Stable pulse energy in burst mode
  • Variable attenuator and non-linear crystals integrated in laser head
  • Homogeneous near field beam intensity profiles

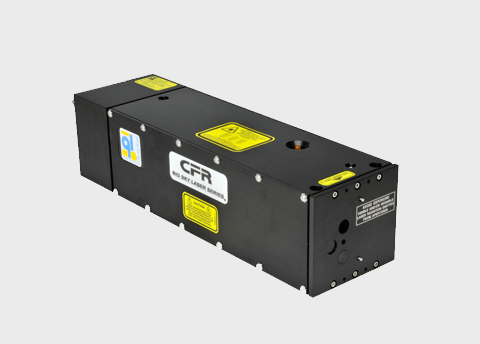

CFR (200-400 mJ)

The CFR laser is a lamp pumped Nd:YAG laser featuring a degree of ruggedization not found in typical scientific lasers. The CFR design has been vibration tested and each laser is temperature cycled overnight, and tested again before shipping to ensure the laser arrives aligned and ready for use.

  • 1064, 532, 355, 266, 213 nm and 1.57 µm available
  • Alignment guaranteed
  • Quick umbilical disconnects
  • Compact and portable
  • Gaussian or multimode resonators
  • 50 million shots lamp lifetime guaranteed
  • Built to withstand harsh environments

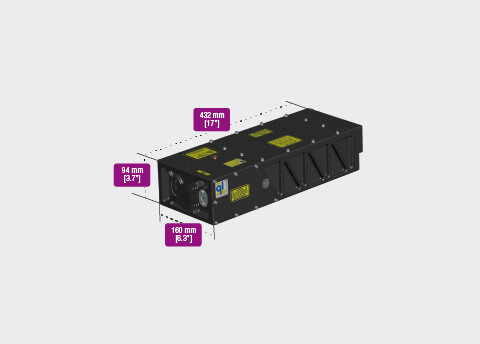

DRL (100-700 mJ)

The DRL laser is a lamp pumped Nd:YAG laser based on 2 YAG rods pumped by 1 flash lamp each. This design enables a broad range of pulse energy and repetition rate combinations. Two versions of power supplies are used to cover the whole range of repetition rates. The DRL covers  20 – 200 Hz with pulse energies of 700 – 100 mJ at 1064 nm. The laser head is compact for easy integration and sealed to operate in various environments. The DRL frequency range can be extended by the recombination of 2 laser heads in a compact and sealed package. This allows to effectively double the repetition rate while keeping the same output energy as a single DRL laser. Please contact Lumibird for more information about capabilities and specifications.

  • 1064, 532 and 355 nm available
  • Quick umbilical disconnects
  • Compact
  • Multimode resonators
  • 100 million shots lamp lifetime guaranteed
  • Sealed laser head to operate in various environments

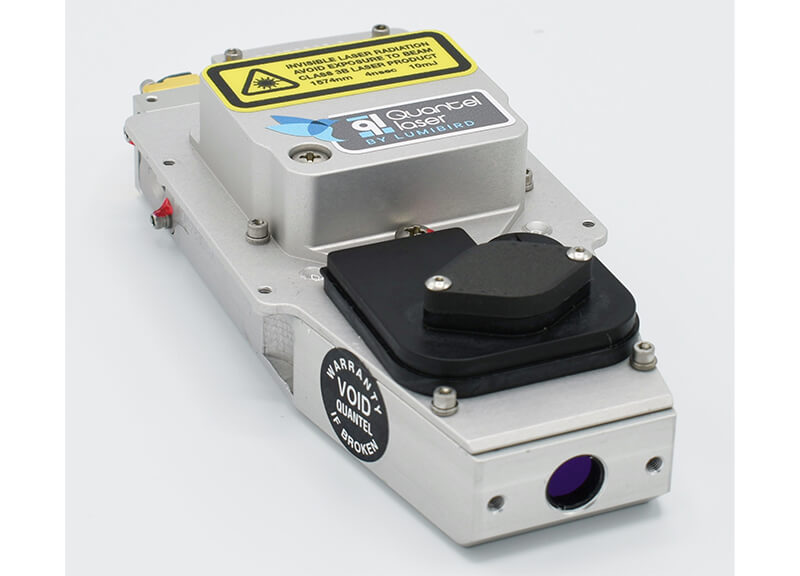

Falcon (5 mJ)

The Falcon laser series was built for rugged applications and unpredictable environments where temperature and vibration would destroy most commercial lasers. A proprietary design, the Falcon provides eye-safe wavelengths in a compact yet robust package. Designed for battery operation in hand-held and mobile applications, this DPSS Nd:YAG laser features maintenance free operation for years of hard use.

  • DPSS OPO for eye safe wavelength
  • Internal temperature compensation for reliable performance in real world applications
  • OPO designed for dependable (consistent) performance in commercial applications
  • Sealed laser housing design for exposure to harsh environments
  • Battery operation compatible – perfect for handheld applications
  • Custom designed electronics may be available upon request to meet your design requirements
  • Proven drop-resistant up to 1m

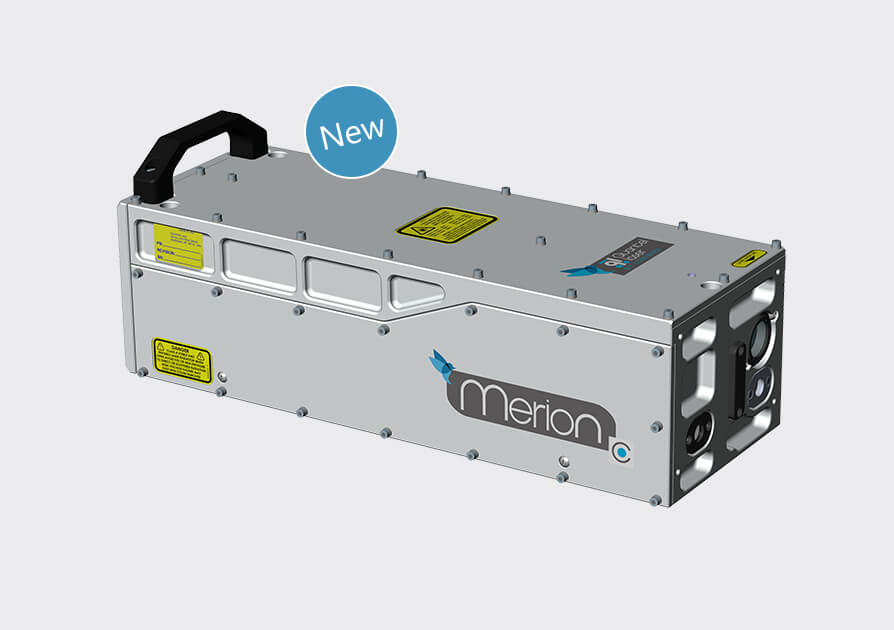

Merion C

The Merion C is the newcomer in the Quantel laser diode-pumped nanosecond Nd:YAG range.

This new DPSS laser combines all the advantages of the compact, powerful, reliable and cost-effective lasers you expect from Quantel laser.

The Merion C delivers 100 mJ @ 1064 nm up to 400 Hz and can be equipped with fully integrated harmonic generators, down to 266 nm, to cover a wide range of applications.

All key components such as laser diodes, gain modules and laser driver electronics are internally designed, ensuring full control of the entire process.

It represents the best solution for demanding applications like LiDAR, LIBS or material processing, where customers install the system and operate it remotely with high reliability and confidence.

  • High power packed in a small footprint
  • Excellent shot to shot stability and superior beam profile up to 400 Hz
  • Sealed against external contaminants
  • Industrial design, built to last
  • Easy integration
  • Interchangeable power supply
  • Diodes warranty: 2 billion shots

.

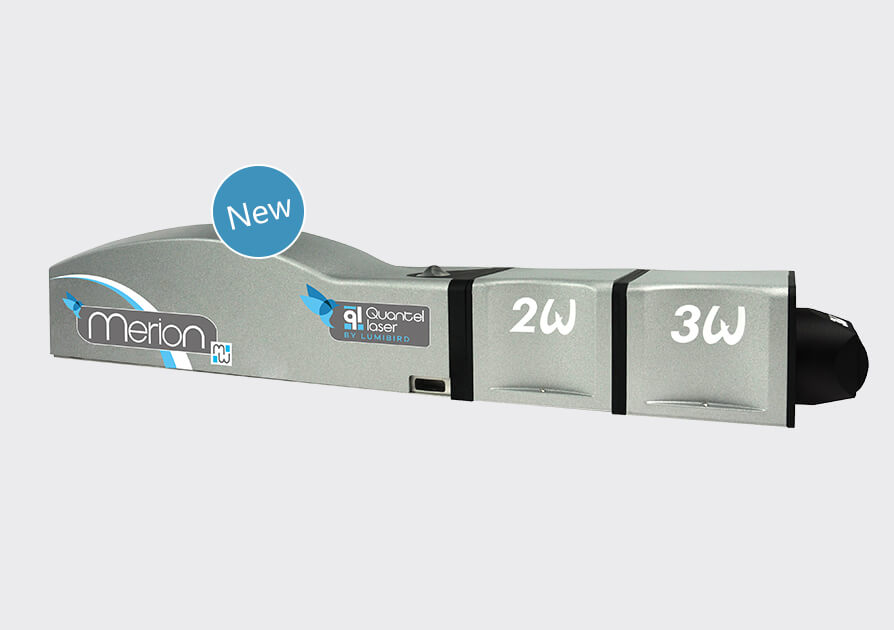

Merion MW

The Merion MW is the flexible and high power version of the new diode-pumped nanosecond MERION series.

The Merion MW is the most cost effective high performance diode-pumped Nd:YAG laser, which combines high energy and high repetition rate in the most compact package, utilizing state of the art, high efficiency laser diodes and gain modules, designed and manufactured in house.

From 200 mJ up to 1 J, tens of Hz to 200 Hz,                the Merion MW can be equipped with plug and play harmonic generators, down to 266 nm, to cover a wide range of applications.

With its robust and monolithic design, it represents the best choice for all applications requiring simultaneous high peak and high average power.

  • Quick and easy access to 1064, 532, 355 and     266 nm
  • Plug and Play harmonics with automatic phase matching
  • Repetition rates up to 200 Hz
  • Compact and robust design
  • SLM option
  • Diode warranty: 2 billion shots

.

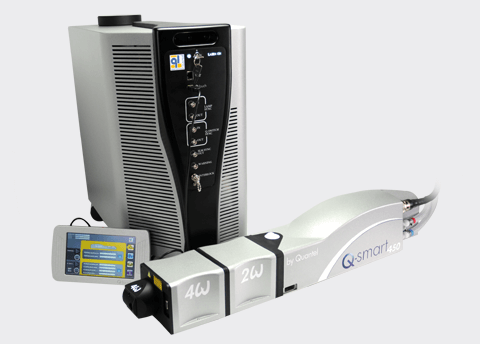

Q-smart (450 mJ)

The Q smart family includes the most flexible pulsed Nd:YAG laser systems in the world.  Complete with automatic harmonic generator phase matching, these innovative systems insure simple operation and guarantees optimal energy performance. Monolithic block construction and compact design features provides superior beam geometry in a compact package. The intuitive Q-touch screen interface makes this the smart choice for easy operation. The Q-smart  450 has many user-friendly features:

  • Quick and easy access to 1064, 532, 355, 266 & 213 nm
  • Repetition rates up to 20Hz
  • Lightweight and compact design
  • Quick-connect cables and cooling lines
  • Innovative, hands-off phase matching
  • Intuitive touch screen interface
  • No installation required
  • 100 million shot flashlamp lifetime
  •  2-year warranty
  • New : SLM (Single Longitudinal Mode) option available and upgradable on site
  • New : highest energy at 532 & 355 nm with a single doubling crystal

.

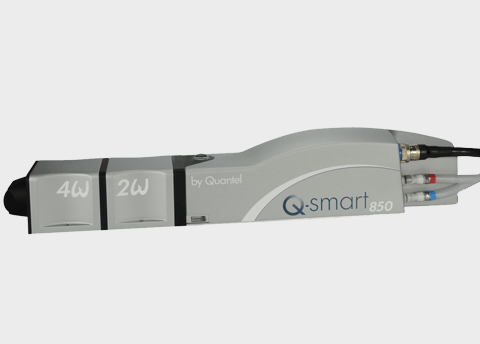

Q-smart (850 mJ)

The Q-smart 850 is the new pulsed Nd:YAG laser from Quantel. Controlled by the Q-Touch pad, it is a high energy, cost-effective laser system. Building on the Brilliant’s modularity and superior beam geometry, the Q-smart laser offers additional user-friendly features.

  • Intuitive touch screen interface
  • Innovative, hands-off harmonic generator phase matching
  • Light, compact, and disconnectable
  • 100 million shot flashlamp lifetime
  • 2-year warranty
  • New : SLM (Single Longitudinal Mode) option available and upgradable on site
  • New : highest energy at 532 & 355 nm with a single doubling crystal

.

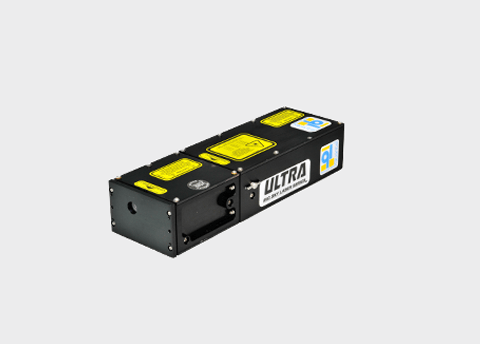

Ultra (50-100 mJ)

The Ultra laser is a lamp pumped Nd:YAG laser featuring a degree of ruggedization not found in typical scientific lasers. The Ultra design has been vibration tested and each laser is temperature cycled overnight, and tested again before shipping to ensure the laser arrives aligned and ready for use.

  • 1064, 532, 355, 266, 213 nm and 1.57 µm available
  • Alignment guaranteed
  • Quick umbilical disconnects
  • Compact and portable
  • Gaussian or multimode resonators
  • 50 million shots lamp lifetime guaranteed
  • Built to withstand harsh environments

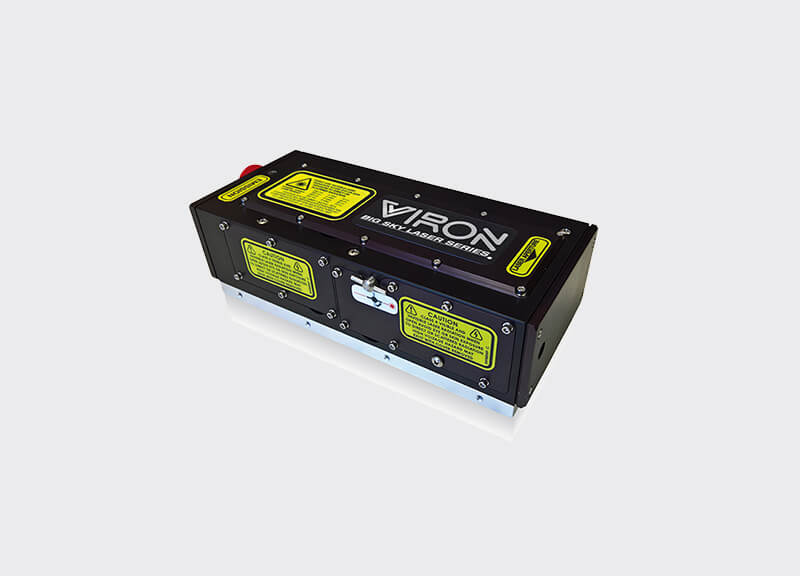

Viron (30-50 mJ)

The Viron™ is a diode pumped Q-switched Nd:YAG laser. The Viron™ was specifically designed for high efficiency in a robust, compact package favored by instrumentation manufacturers.

  • Compact pulsed diode-pumped solid-state laser
  • Laser head and control electronics integrated into one housing
  • Operation requires only an external 24V DC standard power supply
  • Sealed for operation in various environments
  • Easy to integrate
