Streak camera technology was developed for measuring ultra-fast optical phenomena. OptoScope streak cameras provide temporal resolution down to the Picosecond regime. Additionally, OptoScope systems have high sensitivity allowing single photon detection. Streak cameras are the only instruments that can capture the behavior over time of multiple optical signals. Combined with a spectrometer this allows their application in the field of time resolved spectroscopy.

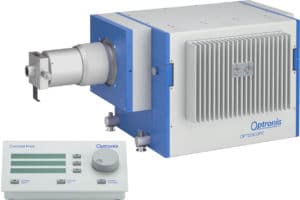

SC-10 Systems
Specifications:
- Temporal resolution <2 ps
- Trigger frequency 0…4 MHz
- Synchroscan 25…250 MHz
- Wavelength 200…950 nm
- High temporal resolution
- Single and dual timebase
- Spectrometer coupling
- Single-photon sensitivity
Applications:
- Semiconductor- and solid-state material research
- Laser- and plasma physics
- Research in Chemistry and Biology
- Detonics

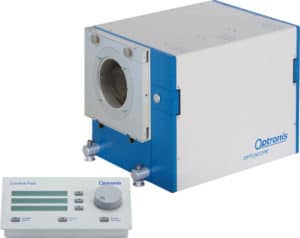

SC-20 Systems
Specifications:
- Large detection area 35 mm
- Temporal res. <600 ps
- Trigger frequency 0…10 Hz
- Wavelength 230…950 nm
- High spatial resolution
- Triggered sweep
- High sweep linearity
- Fiberoptic input
- UV option
Applications:
- Detonics
- Plasma Physics
