KSV NIMA Dip Coaters

KSV NIMA Dip Coaters are fully automated and highly accurate thin film deposition instruments. They are optimized for creating effective coatings for example with nanoparticles and come in a range of models depending on the size of the sample and the number of liquids to be used.

The range of dip coaters is divided into two types:

  • single vessel systems
  • mul­ti-vessel systems

Dip Coaters for Single Vessel sequencing

Single vessel dip coaters are used to deposit from one solution





SMALL MEDIUM LARGE EXTRA LARGE
SAMPLE SPECIFICATIONS
Weight (g) 0…150 0…500 0…500 0…2500
Height (mm) 15…140 25…300 25…500 25…1000
Width (mm) 5…150 5…400 5…400 5…600
Thickness (mm) 0.15…3 0.15…15 0.15…15 0.15…15
Number of samples 1, 2*, 3* 1, 6*, 10* 1, 6*, 10* 1, 6*, 10*
OTHER INSTRUMENT SPECIFICATIONS
Dipping speed (mm/min) 0.1…100, 0.2…200* 1…1000 1…1000 1…1500
Dimensions (L×W×H, mm) 275×154×420 490×410×1200 490×410×1800 690×606×2650

SINGLE VESSEL SMALL

SINGLE VESSEL MEDIUM/LARGE

SINGLE VESSEL EXTRA LARGE

Dip Coaters for Multiple Vessel sequencing

Multiple Vessel Dip Coaters enable many solutions to be used that can include cleaning or rinsing.

  SMALL MEDIUM LARGE
SAMPLE SPECIFICATIONS
Weight (g) 0…150 0…500 0…500
Height (mm 10…70 25…300 25…500
Width (mm) 5…45 5…950 5…950
Thickness (mm) 0.15…3 0.15…15 0.15…15
Number of samples 1 1, 6*, 10* 1, 6*, 10*
OTHER INSTRUMENT SPECIFICATIONS
Dipping speed (mm/min) 0.1…108 1…1000 1…1000
Horizontal motion type Rotating dipper Linear (0…800 mm) Linear (0…800 mm)
Horizontal speed (mm/min) Fixed rotational speed 1…1500 1…1500
Dimensions (L×W×H, mm) 275×154×420 490×410×1200 490×410×1800

Multi Vessel Small

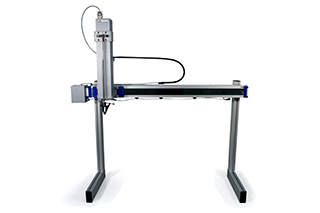

Multi Vessel Medium/Large
