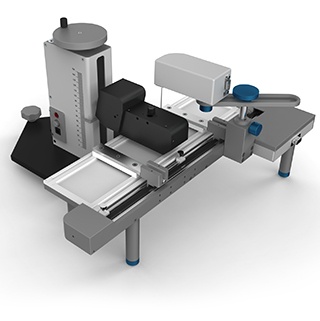

MicroBAM
MicroBAM (Brewster Angle Microscope) enable visualization of monolayers, typically at the air-water interface in a Langmuir Trough.
Technical Specifications
|
|
KSV NIMA MICROBAM |
MEASUREMENT |
|
Angle-of-incidence range (°) |
53, fixed |
Light source power (mW) |
50 |
Light source wavelength (nm) |
659 |
Image resolution (µm) |
12 (horizontal image direction, center)1 |
Field of view (µm) |
3600×4000 |
Polarizer |
Integrated (p-polarisation of the incident beam) |
Analyzer |
Integrated |
CAMERA |
|
Type |
USB |
Resolution (px) |
640×480 |
Framerate (fps) |
30 |
Adjustable exposure time and gain |
√ |
IMAGE PROCESSING |
|
Image resizing |
√ |
Contrast enhancement |
Profile |
Image filtering |
√ |
Particle size determination |
√ |
HARDWARE |
|
Instrument dimensions (L×W×H, cm) |
22×27.7×40.2 |
Measuring head dimensions (L×W×H, cm) |
5.7×16.2×7.2 |
Power supply (V, Hz) |
100-240, 50/60 |
Weight (kg) |
10 |
COMPATIBILITY WITH L & LB TROUGHS |
|
Medium |
√ |
Large |
√ |
High Compression |
√ |
Alternate |
√ |
1According to Rayleigh’s criterion
2P-polarization of the incident beam
